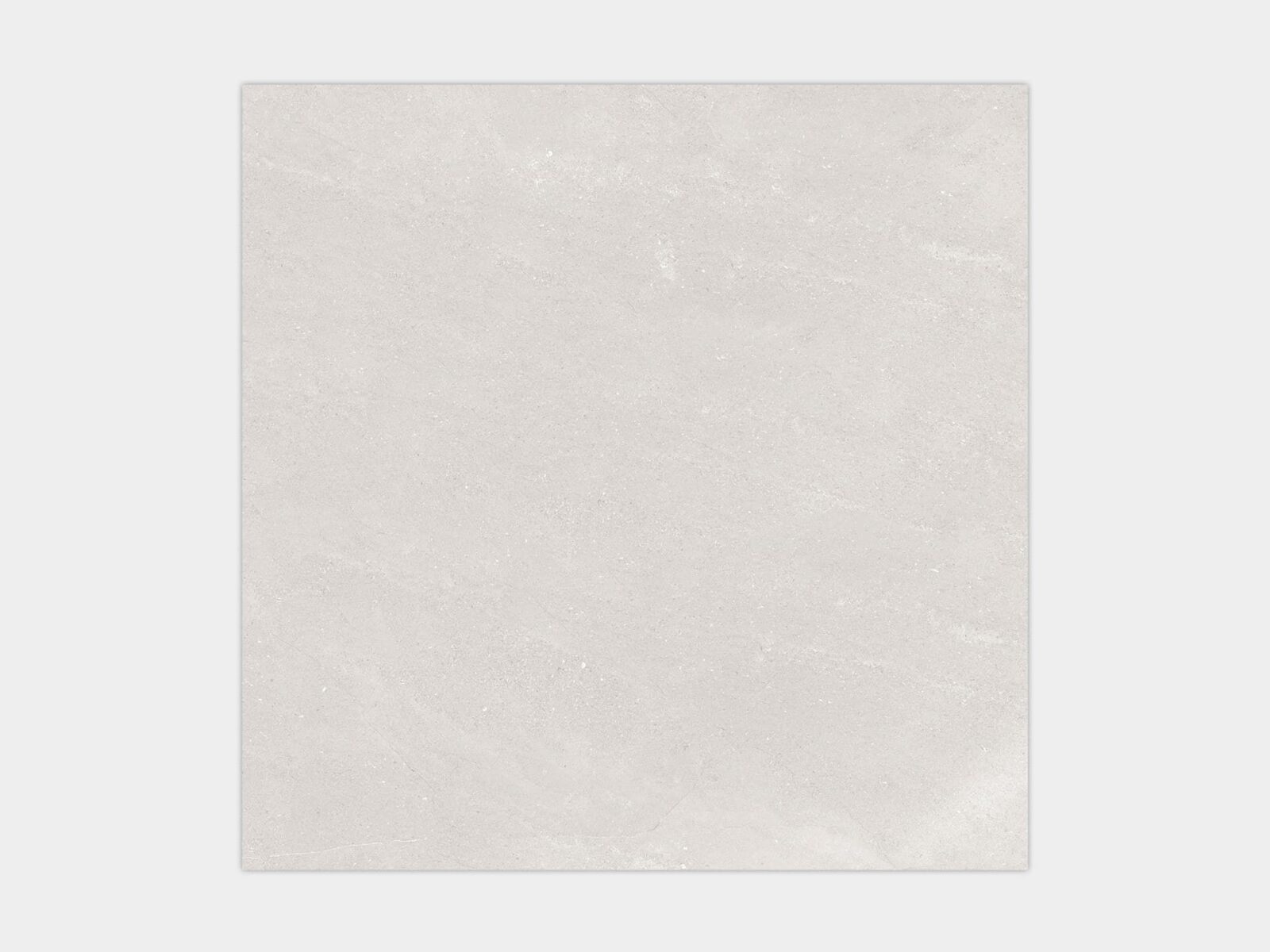

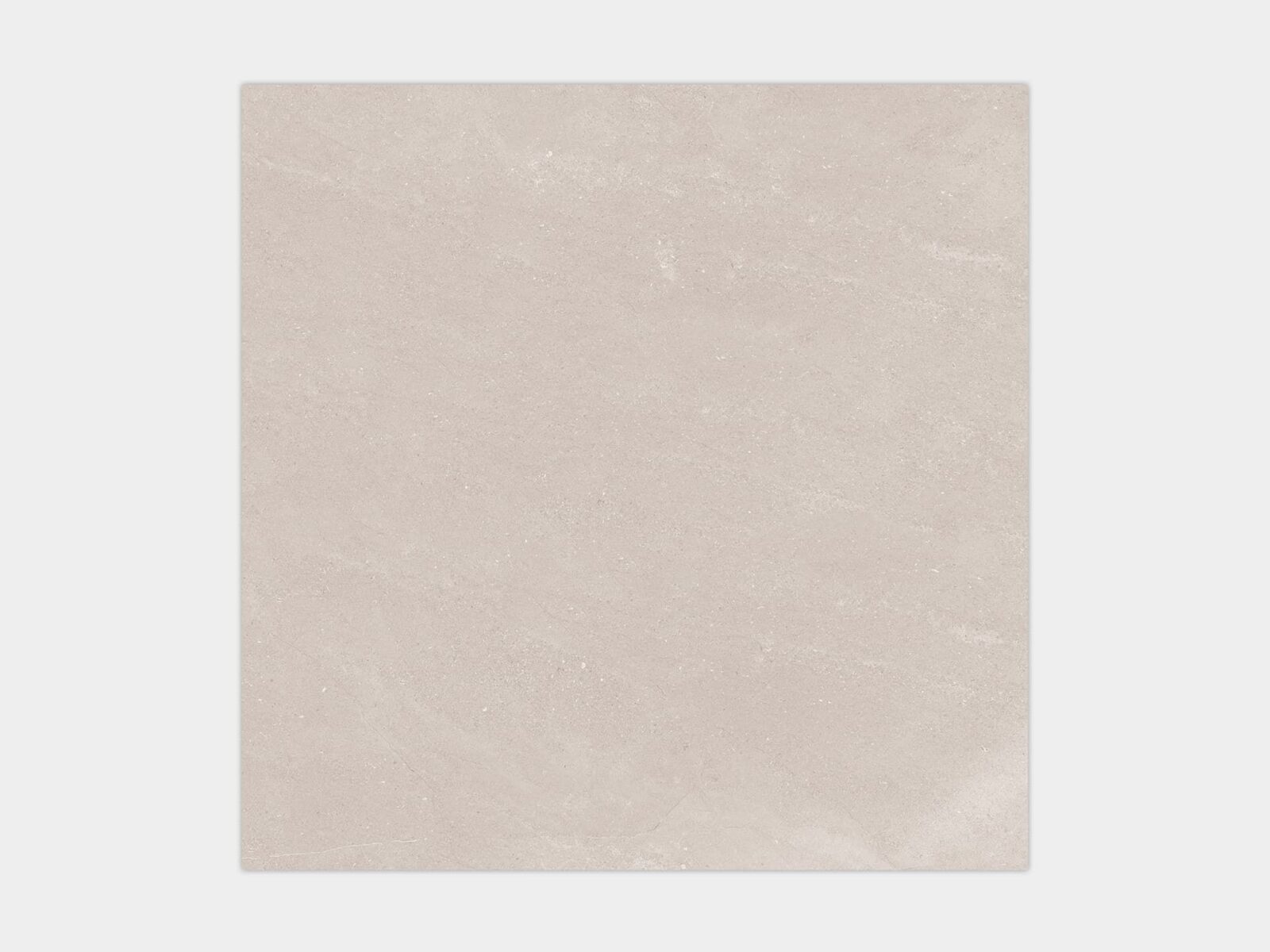

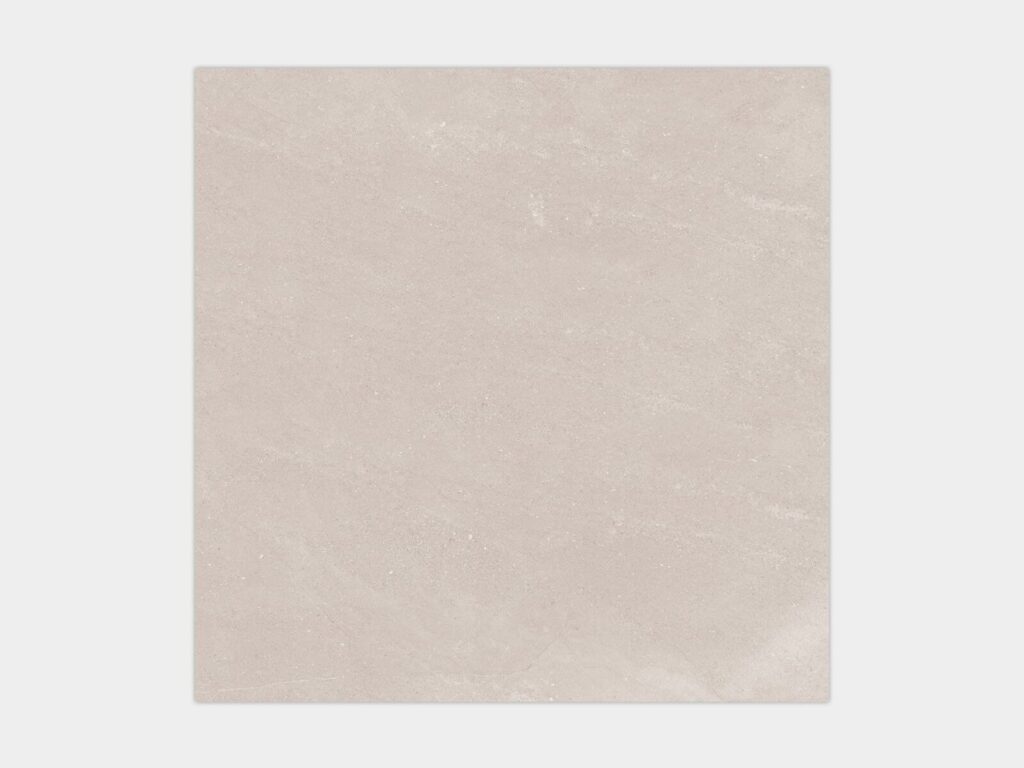

Adda 47″ X 47″
Through-body Porcelain
Description
Infinity (by sq. ft.) Adda 47″ x 47″ – Tile with a high degree of compaction, uniform in appearance and with a lower percentage of glazing in the composition. Natural-looking, non-glossy surface finish. Full-body porcelain stoneware, with high strength against extreme temperatures, spaces with high traffic or movement of loads, among others. General deshaded design with a degree of color and appearance variation. Moderate variation. The color intensity of each piece may vary significantly, although the colors present in one tile will be representative of the colors to be expected in the rest of the tiles. Name given to the finish of those tiles dimensionally improved after the firing process. U4 Installation on floor.
Colors
Thickness
5/16″ approx
Size (in.)
47 1/4″ x 47 1/4″ approx
Finish
Matte
Shape
Square
View the collection.
Mechanical Features
| Test | Result |
|---|---|
| Breaking Strength | 532.11 LBF (>292 LBF*) |
| Modulus of Rupture | 7687 PSI (lbf/in²) (≥5076 PSI*) |
| Crazing Resistance | Resists 3 cycles |
| QB-UPEC (U) | 4 |
| QB-UPEC (P) | 3 |
| QB-UPEC (E) | 3 |
| QB-UPEC (C) | 2 |
| Resistance to Thermal Shock | RESISTE |
Hygienic Features
| Test | Result |
|---|---|
| Chemical Resistance | Class “A” for swimming pools and cleaning products (resists attack). Minimum Class “B” for acids and bases |
| Stain Resistance | Class 5. Easy cleaning with water (≥3 Min.) |
* ASTM C648
* ASTM C650 / C1378
Anti-Slip Value
| Test | Result |
|---|---|
| Dynamic Coefficient of Friction (DCOF) | 0.56 (T15C2) |
| Slip Resistance (Wet Pendulum) | IRHD 55 CL1 (UNE-EN 16165:2022 Annex C*) |
| Slip Resistance (Shod Feet) | <R-9 TONO 8 / ID 2427* |
| Slip Resistance (Barefoot) | B TONO 5 16801* |
| Pendulum Test Value (PTV) | IRHD 96 — Wet 24 / Dry 58 (T15C2) |
| Slip Resistance (Wet Pendulum – AUS) | IRHD 55 P1 (AS 4586*) |
| Slip Resistance (Wet Pendulum – AUS) | IRHD 96 P1 (AS 4586*) |
* ANSI A326.3
Determination of Light Reflectance Value (LRV)
| Test | Result |
|---|---|
| Light Reflectance Value (LRV) | 47.6 |
Packing
| Specification | Value |
|---|---|
| Sales Units per Box | 15.5 SQF/CS |
| Sales Units per Pallet | 651.04 SQF/PAL |
| Sales Units per Unit | 15.5 SQF/ST |
Scope of Use
| Specification | Value |
|---|---|
| Technical Code-1 | 6 — Use on Heavy Traffic Floors |
