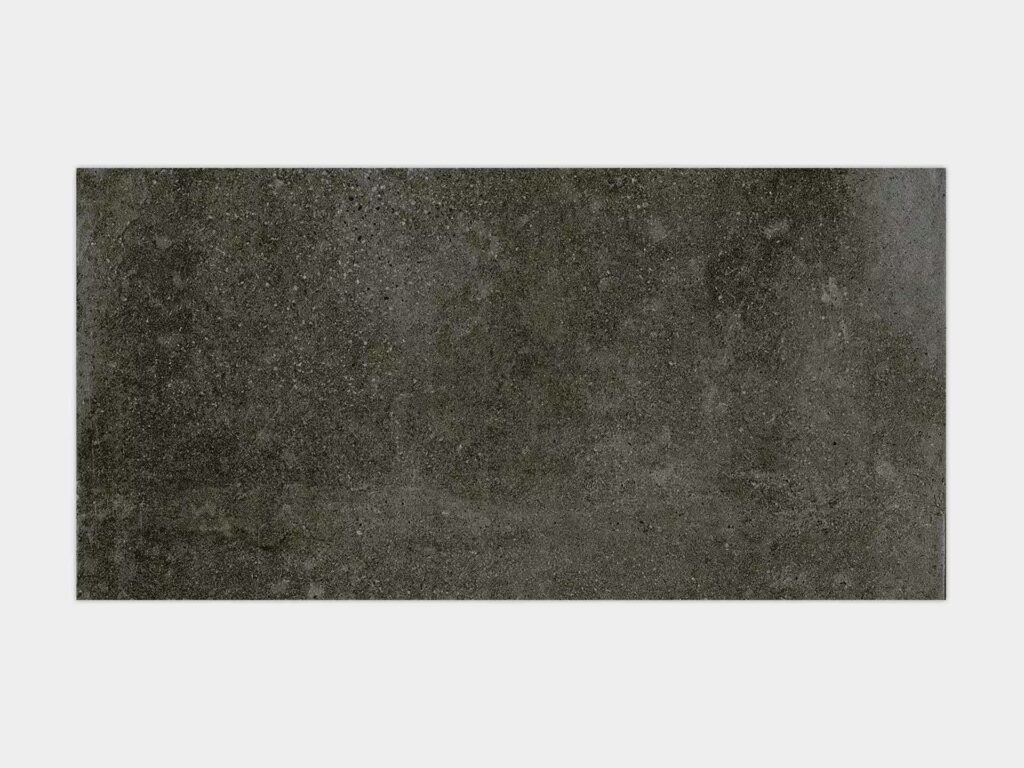

Bottega Antracita 23X47

Bottega 23″ X 47″ Matte

Ceramic

Description

Infinity (by sq. ft.)Matte concrete effect porcelain wall tiles. Size 23 x 47 in, suitable for indoor wall or floor and outdoor walls.

Features

Natural-looking, non-glossy surface finish. General deshaded design with a degree of color and appearance variation. Name given to the finish of those tiles dimensionally improved after the firing process. An exclusive large-format floor tile which has been thought up for those surfaces that look for an optical continuity and greater spaciousness. U3. Installation on floor.

Colors

Thickness

7/16″ approx.

Size

23 7/16″ approx. x 47 1/4″ approx.

Finish

Matte

Shape

Rectangle

Edge Detail

Rectified


View the collection.

Applications

Bathroom, Bedroom, Kitchen, Living Room, Wall, Floor, Outdoor Wall

Downloads

Maintenance

Testing

Breaking Strength Chemical Resistance Stain Resistance Water Absorption Crazing ResistanceModulus of RuptureShade Variation Rating
785.17 LBF/Caliza, Acero, Antracita
532.11 LBF/White
>292LBF*
Class “A” for swimming pools and cleaning products
(resists attack). Minimum Class “B” for acids and bases
B Min.*
Class 5. Easy cleaning with water 3 Min.*BIa – Porcelanico (E<=0.1%)Resists 3 cycles

11.78 LBF/Caliza, Acero, Antracita
11.92 LBF/White >=8LBF*
V3

*ASTM C648/C650/C1378

Abrasion resistance 4, 2(Antracita only)

Qb-upec (u) 3
Qb-upec (p) 3
Qb-upec (e) 3
Qb-upec (c) 2
Resistance to thermal shock RESISTE

ANTI-SLIP VALUE Caliza
Dynamic coefficient of friction (dcof) 0.70 (T53C2)
Slip resistance (wet pendulum) irhd 55 CL1
Slip resistance (shod feet) R-9 12381-14401*
Pendulum test value (ptv) irhd 96 WET 31 / DRY 63 (T53C2)
*ANSI A326.3

ANTI-SLIP VALUE White
Dynamic coefficient of friction (dcof) 0.65 (T9C2)
Slip resistance (wet pendulum) irhd 55 CL1
Slip resistance (shod feet) R-9 TONO 6 / ID 3308*
Pendulum test value (ptv) irhd 96 WET 31 / DRY 59 (T9C2)
*ANSI A326.3

ANTI-SLIP VALUE Acero
Dynamic coefficient of friction (dcof) 0.64 (T7C2)
Slip resistance (wet pendulum) irhd 55 CL1
Slip resistance (shod feet) R-9 C232349 (3C2)*
Pendulum test value (ptv) irhd 96 WET 35 / DRY 56 (T7C2)
*ANSI A326.3

ANTI-SLIP VALUE Antracita
Dynamic coefficient of friction (dcof) 0.69 (T9C2)
Slip resistance (wet pendulum) irhd 55 CL1
Pendulum test value (ptv) irhd 96 WET 36 / DRY 57 (T9C2)
*ANSI A326.3

DETERMINATION OF LIGHT REFLECTANCE VALUE (LRV)
Determination of light reflectance value (lrv)= 31.79/Acero, 49.04/Caliza, 53.81/White, 7.68/Antracita

Packing

Sales units per box 15.4 SQF/CS
Sales units per pallet 431.11 SQF/PAL
Sales units per unit 7.7 SQF/ST

RECOMMENDED USE LOCATIONS
Single-family dwelling
Outdoor Premises: Porches, verandah, terrace, outdoor access or circulation area
Indoor Premises – Dry: Entrance and other enclosures with direct opening to the outside (garden, terrace, storage room).
Indoor Premises – Dry: Individual staircase
Indoor Premises – Wet: Kitchen, mini kitchen in living area, laundry room
Indoor Premises – Humid: Bathroom or Toilet
Collective housing
Outdoor premises: Balconies, terraces, galleries (not accessible from the outside)
Indoor Premises – Common Elements: Entrance Hall (less than 15 dwellings)
Interior Premises – Common Elements: Entrance Hall (more than 15 dwellings)
Indoor Premises – Common Elements: Stairs and corridors with or without lifts
Indoor Premises – Common Elements: Meter centralisation room
Indoor Premises – Common Elements: Storage rooms for children’s cars, bicycles, etc.
Indoor Premises – Dwelling – Damp: Kitchen, mini kitchen and living area, laundry room
Indoor Premises – Dwelling – Damp: Bathrooms or shower rooms
Public Residential
Single or double rooms
Group rooms
Intensive use dormitories in residences, schools, etc.
Administrative
Office with workstation
Collective office, open plan office
Meeting/conference room, shops and retail (sales area)
Shops, warehouses with average public attendance (sales area)
Department stores, hypermarkets, shopping centres (sales area)
Commercial
Shops and retail trade (Sales area)
Shops, warehouses with average public attendance (sales area)
Department stores, shopping centres (sales area)
Teacher
Pre-school and Primary: Classroom without direct opening to the exterior
Infant and Primary: Playroom, exercise, multi-purpose room without direct opening to the outside.
Secondary, Baccalaureate and University: Classroom without direct opening to the outside.
Secondary, Baccalaureate and University: Multi-purpose classroom, meetings
Secondary, Baccalaureate and University: Other laboratories (physics, electricity, radiation, mechanics).
Sanitary
Single-user room, isolation room
Collective room
Waiting rooms, consultation rooms, distribution corridors
Major and minor operating theatres. Operating theatres
Radiological premises
Rehabilitation, massage, therapy and rehabilitation centres
Laboratories (no public access)
Public attendance
Catering: Main dining room, banqueting hall (intensive use)
Catering: Dining room restaurant, bar, cafeteria (medium use)
Catering: Dining room, company cafeteria
Entertainment and recreation: Large hall for receptions, dances, discotheques. Intensive use
Entertainment and recreation: Showroom, cinema, theatre, sports activities, amphitheatres, games (Closed)
Entertainment and recreation: lounges, waiting room, TV lounge, games room
Libraries and reading rooms: Libraries, reading rooms, temples of worship, museums (With public access)
Libraries and reading rooms: Libraries, reading rooms, houses of worship, museums (Internal use)
Common transit areas
Indoor premises: corridors and common areas with heavy traffic
Indoor premises: Corridors and common areas with average traffic
Service, facilities
Toilets in office areas, restricted use
Sanitary premises special hygiene (hospitals, food)
Premises for telephone, computer and other dry installations
Re-printing service, copies of plans, photography
Archive and storage premises
