CUADRO™ 4″ x 9″ Frame
Glazed Porcelain
Description

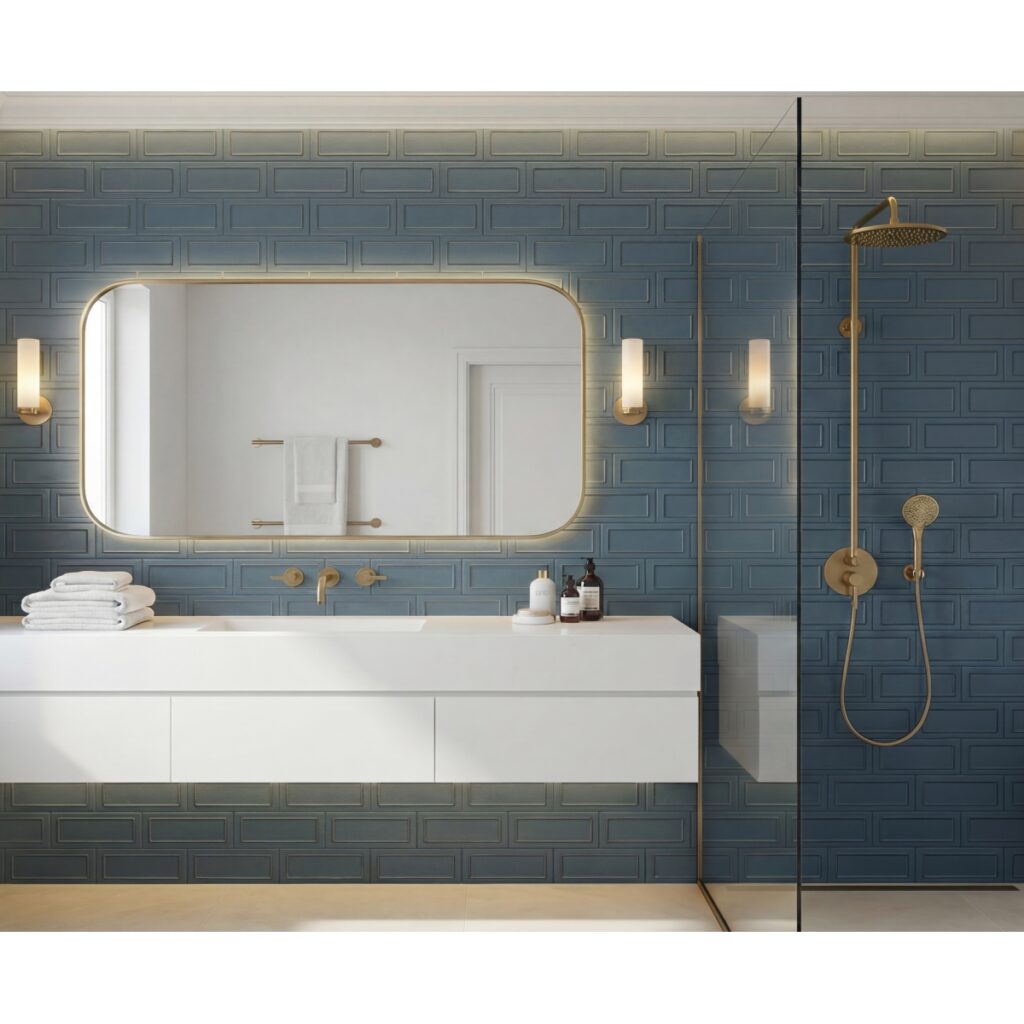

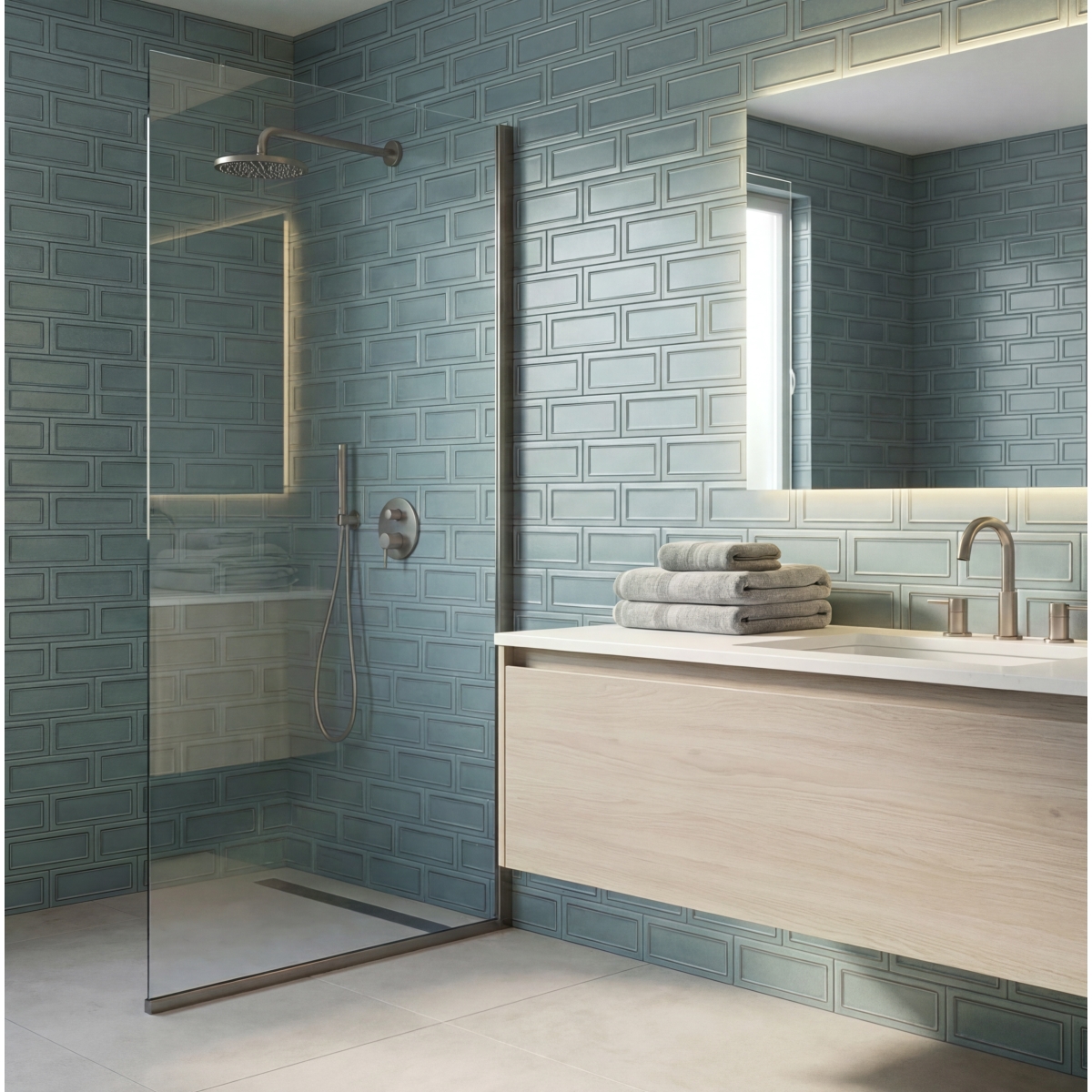

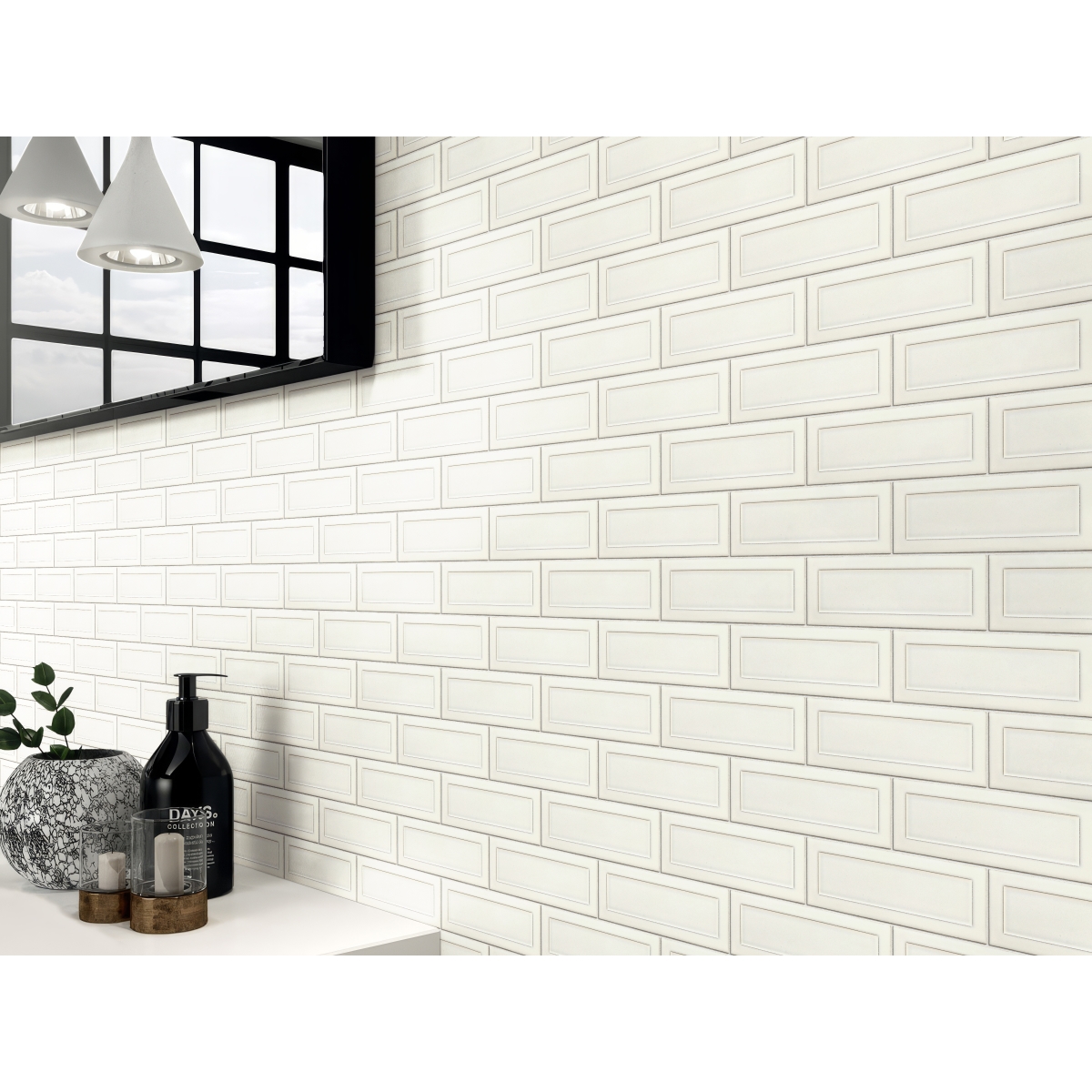

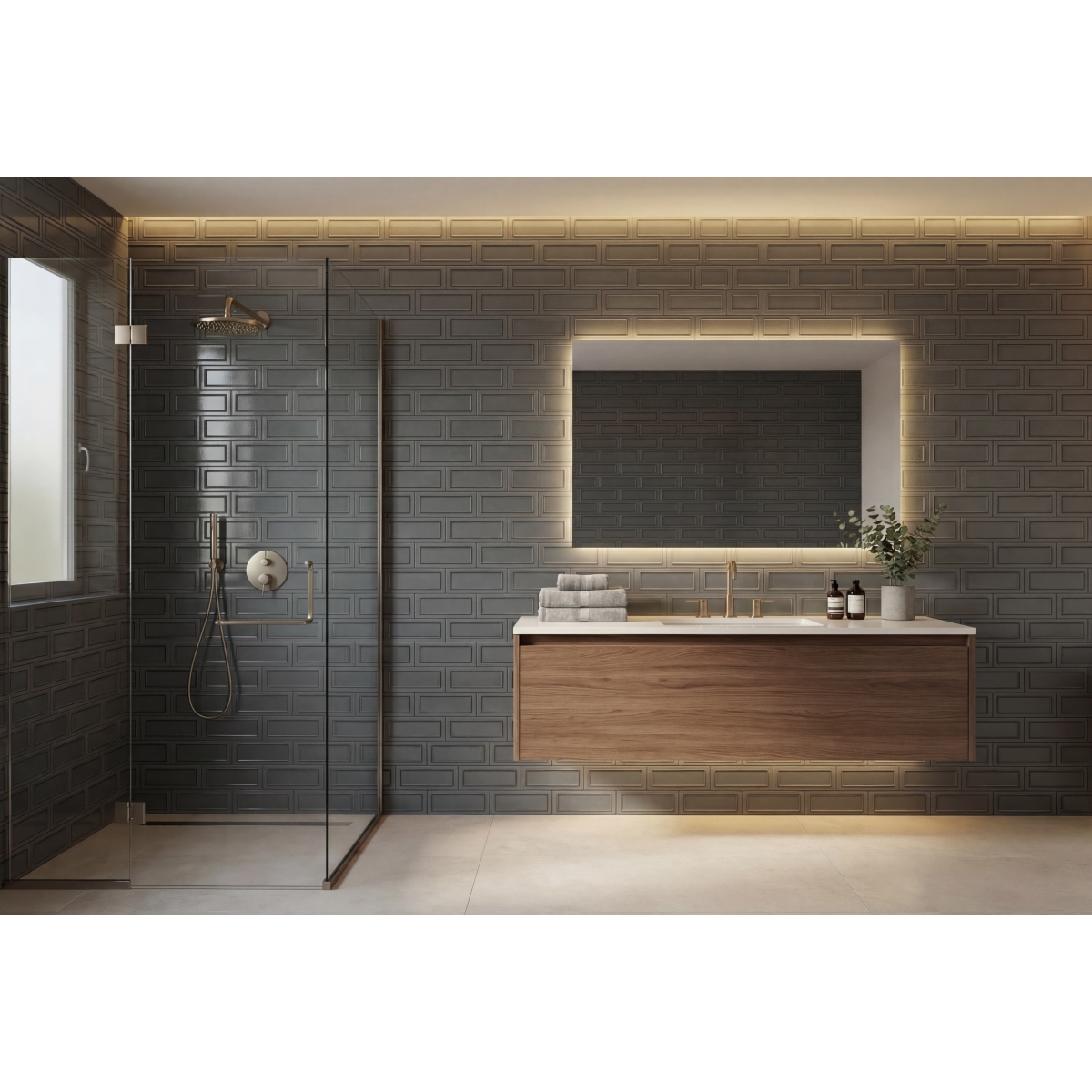

Elegance (by piece) Reminiscent of a classic Shaker door style, Cuadro™ features a beautifully decorative look with all the benefits of tile. Popular blues, in both Royal and Sky, as well as a host of neutrals offer a desirable color palette. And for those more in tune with modern and transitional aesthetics, Cuadro is also available in a clean “frameless” look.
Colors
Thickness*
10mm
Nominal Sheet Size (in.)
9” x 4”
(9.45” x 3.54”)
Finish
Glossy
Edge Detail
Pressed
Faces
Random
View the collection.
Note
*Tile thickness could vary based on size. Larger format tiles will have a higher thickness. Grout Joint Recommendation (in.) 1/8″
Testing
| Method | Results |
| Abrasion Resistance C1027 | II |
| Breaking Strength C648 | >250 |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <0.5% |
| DCOF AcuTest WET | NA, WALL ONLY |
| Crazing Resistance C424 | Resistant |
| Scratch Hardness MOHS | MIN 3 |
| Shade Variation | V2 |
| VOC | VOC Free |
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET | No |
| COMMERCIAL FLOOR DRY | No |
| RESIDENTIAL FLOOR | No |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| RESIDENTIAL SHOWER FLOOR | No |
| COMMERCIAL SHOWER FLOOR | No |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER | No |
| STOVE AREA | Yes |
| FIREPLACE FAÇADE | Yes |
| EXTERIOR WALL | Yes |
| EXTERIOR FLOOR (NOT POOL) | No |
| POOL WATERLINE | Yes |
| UV STABLE | Yes |
