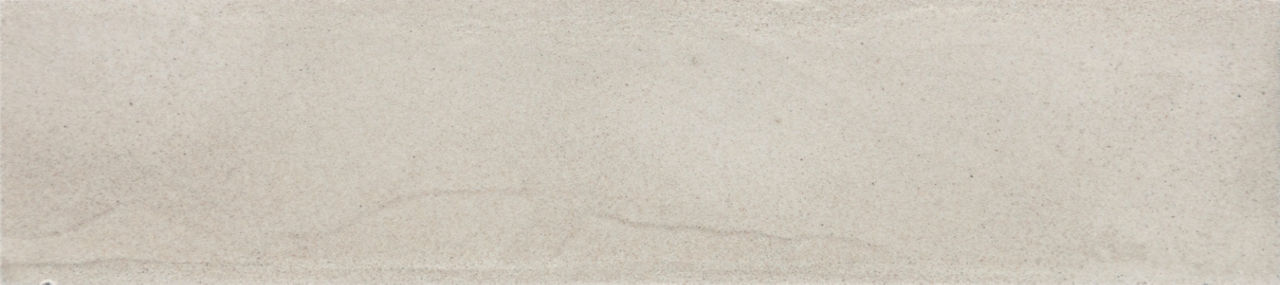

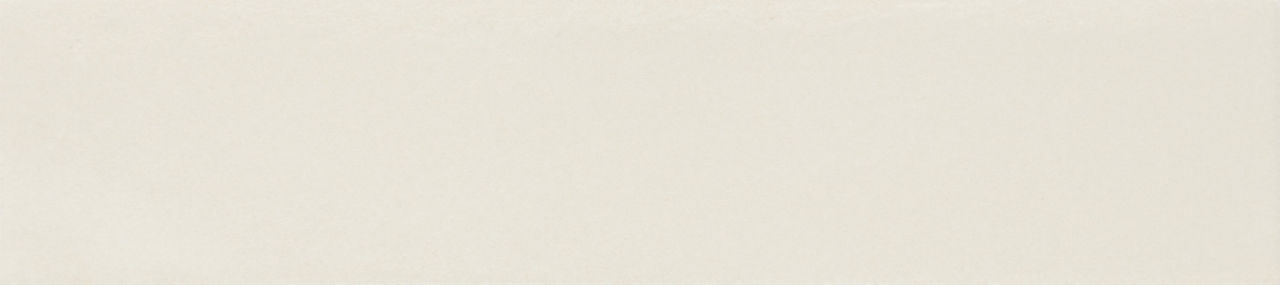

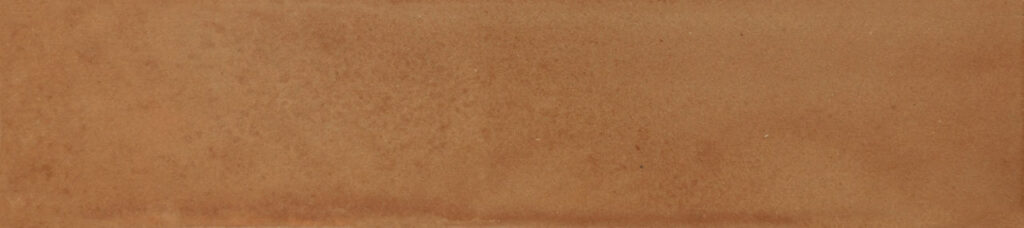

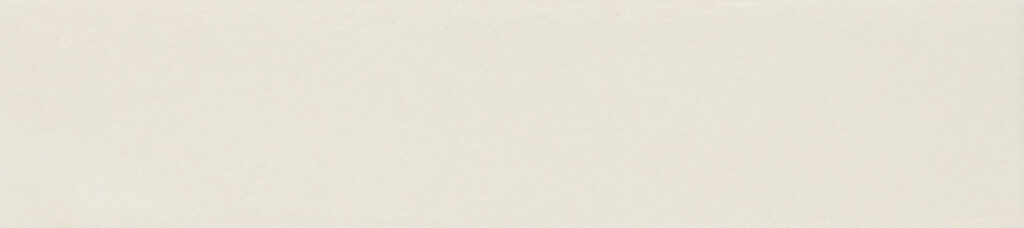

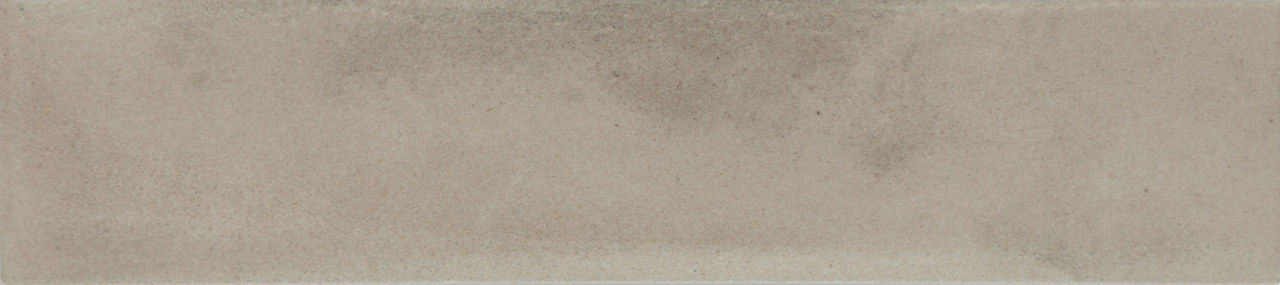

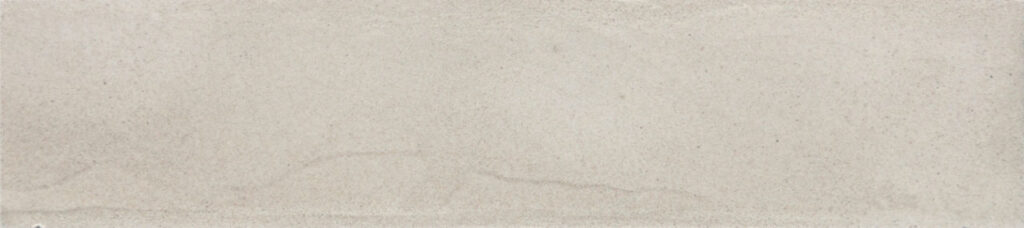

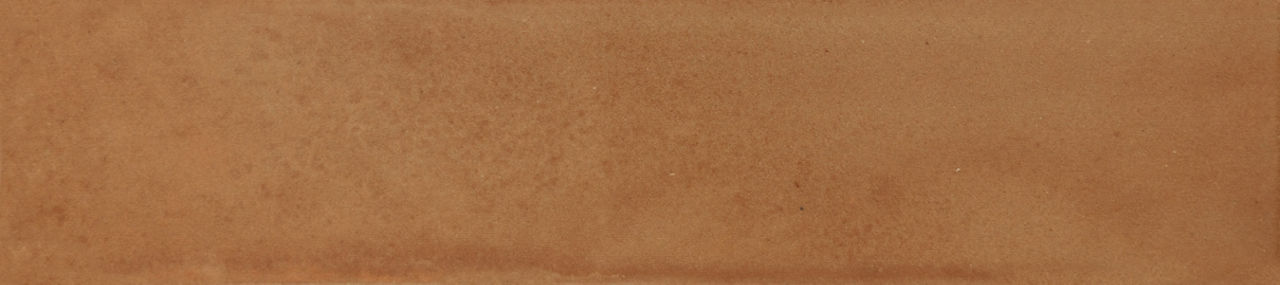

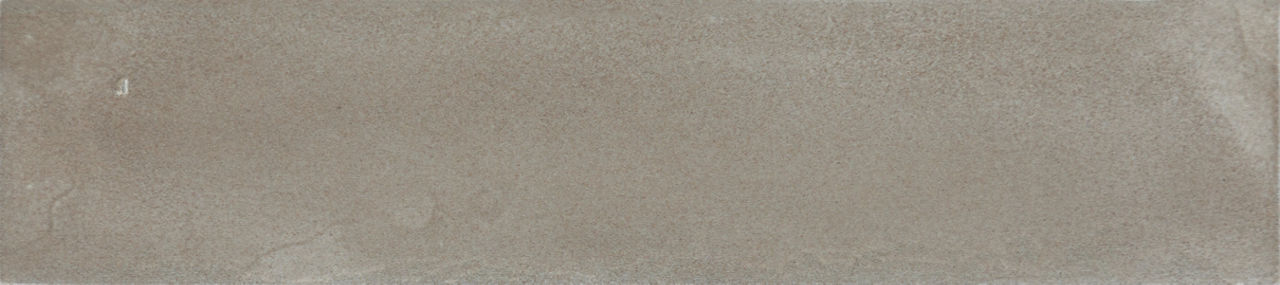

Indoterra 2″ x 9″ Matte
Colorbody Porcelain
Description

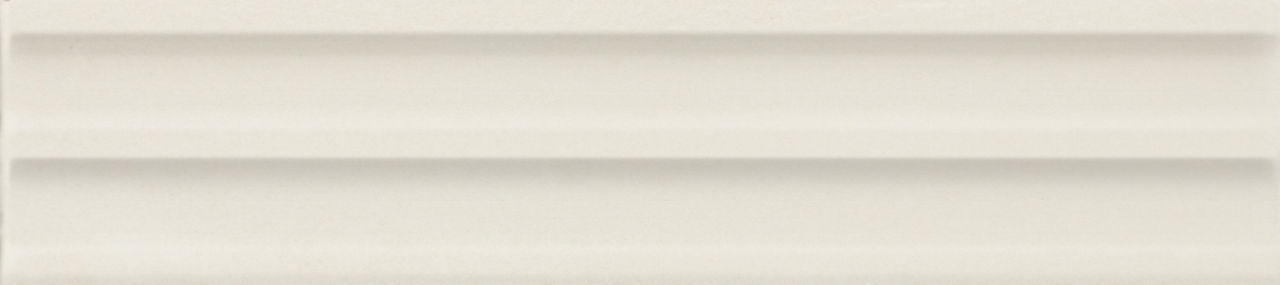

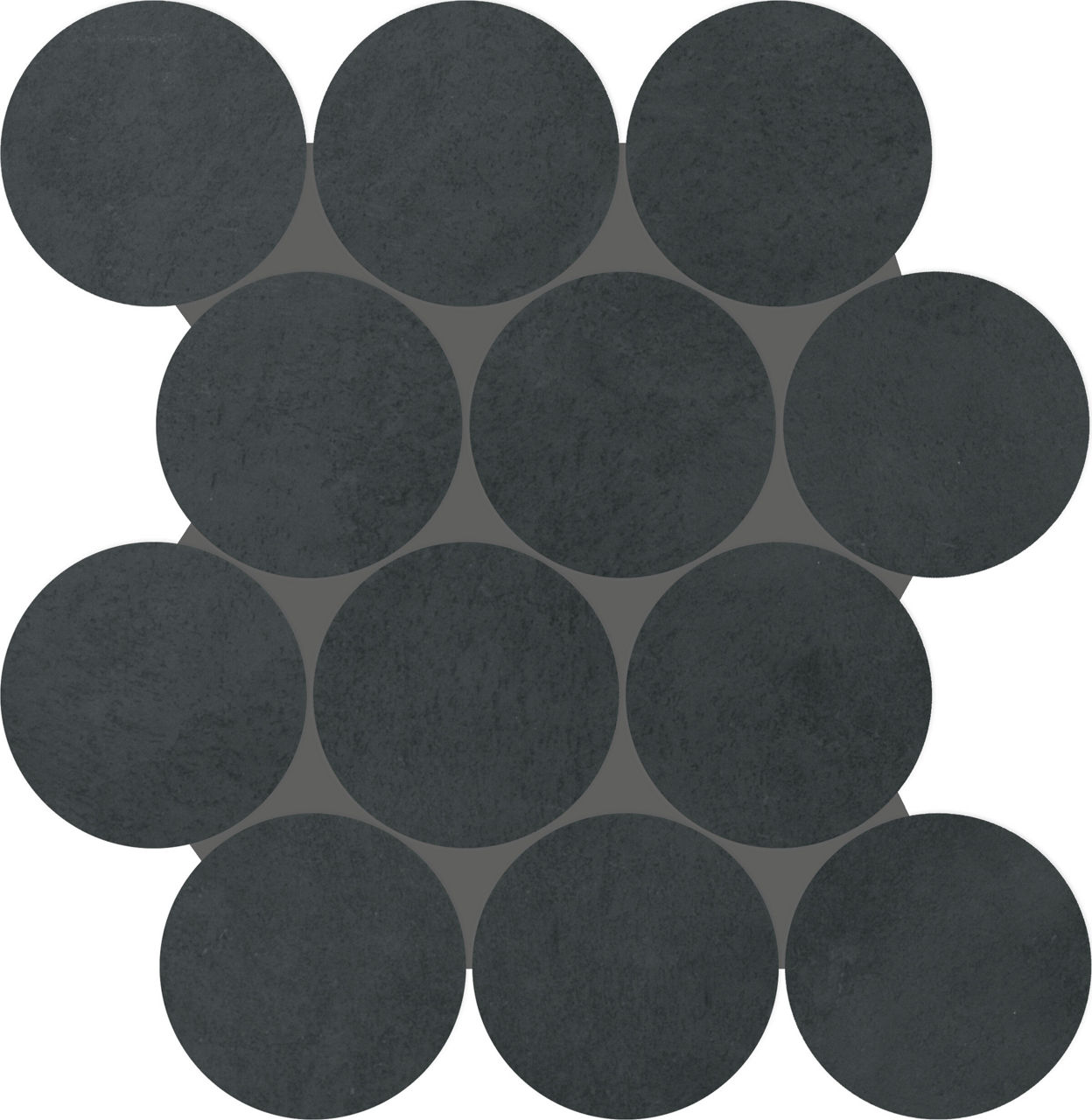

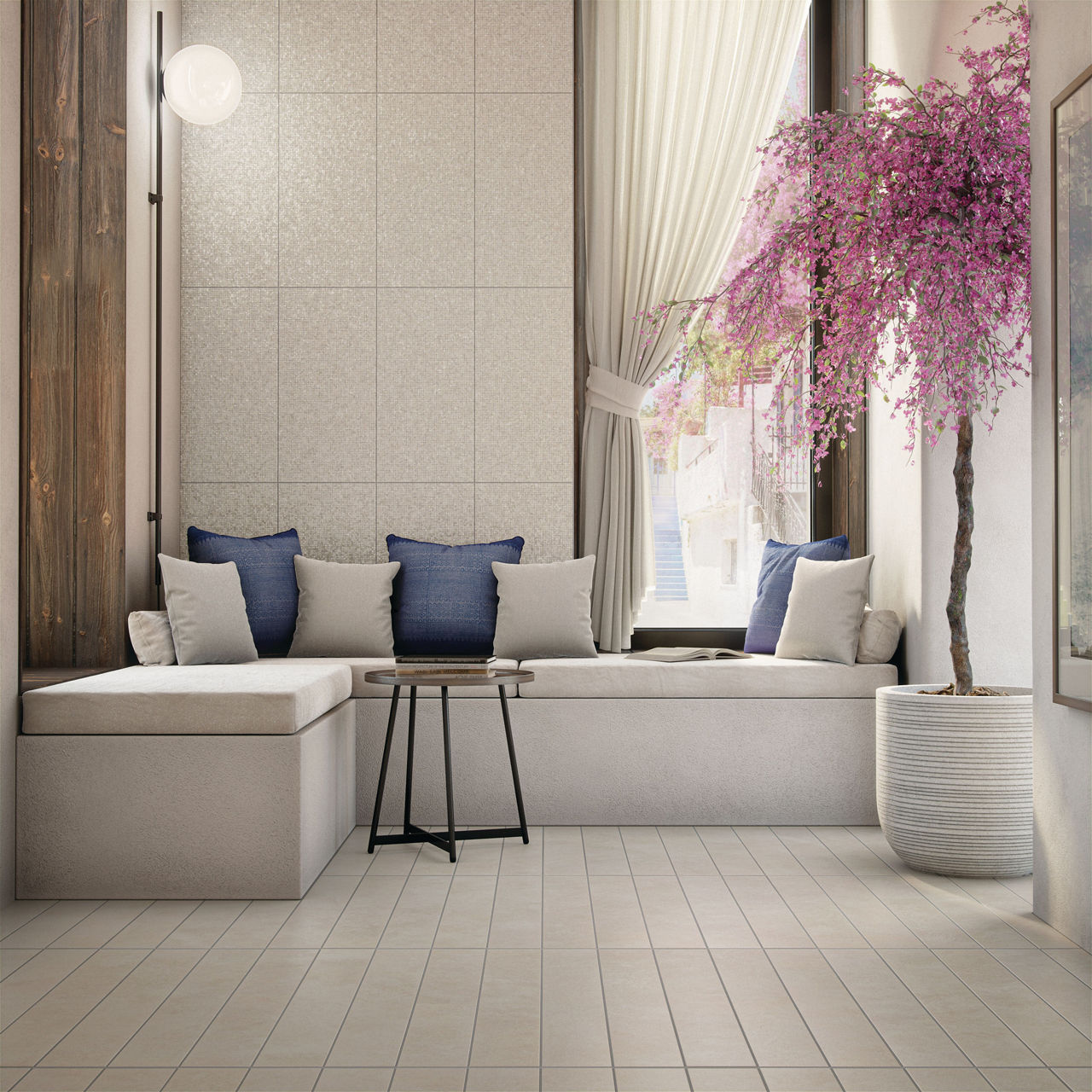

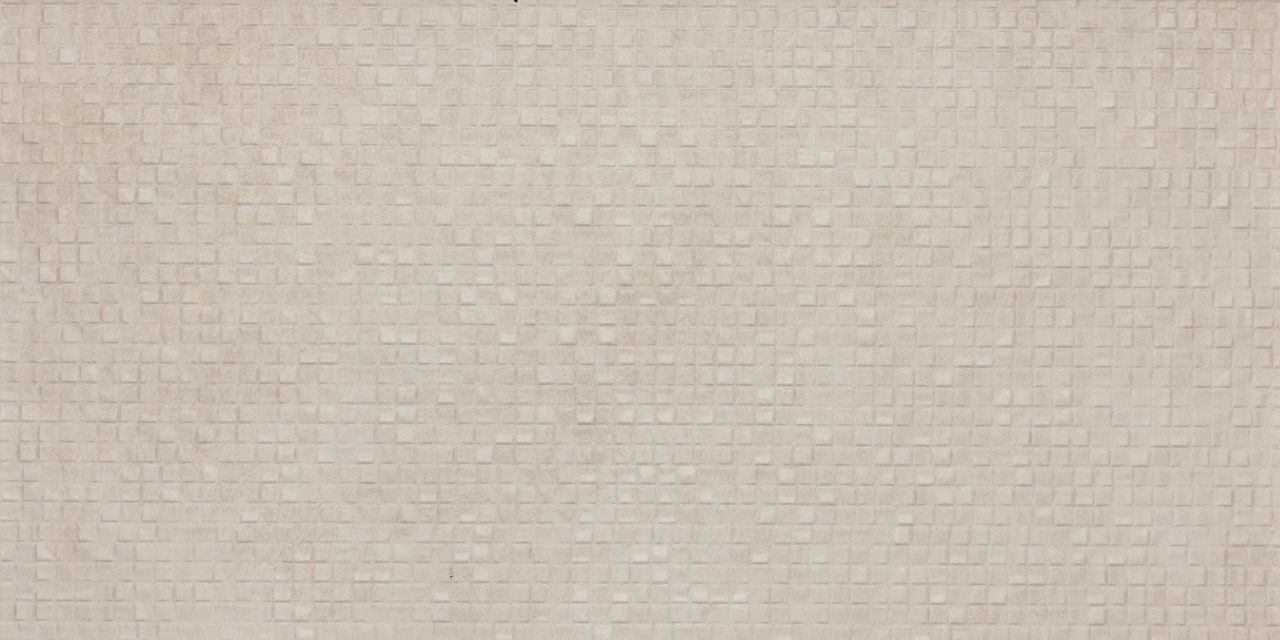

Ambiance (by sq. ft.) Transform your surroundings into a haven of tranquility with ColorBody™ and Glazed porcelain tile, Indoterra™. A concrete-look canvas of neutral tones, Indoterra centers a minimalistic design with large formats, dimensional surfaces and StepWise™ technology for an immersive experience indoors and outdoors. Choose the timeless allure of the 2 x 9 brick with the choice of a fluted or flat surface, or the subtle sophistication of the 12 x 24 woven wall tile and circle mosaic. Indoterra invites you to play with textures and shapes in a color palette that will stand the test of time.
Thickness
3/8″
Size
2-1/4″ x 9-1/2″
(6.00 cm x 24.60 cm)
Finish
Matte
Shape
2″ x 9″ Rectangle
View the collection.
Usage
| USAGE TYPES: | Target DCOF Wet | Suitable |
| Dry & Level – Interior Floor | N/A | ✓* |
| Wet & Level – Interior Floor | ≥ 0.42 | ✓* |
| Shower Floors (Residential or Light Commercial) | ≥ 0.42 | ✓** |
| Exterior Floor Applications (including patios, pool decking & other wet areas with minimal footwear) | ≥ 0.60 | ✓*** |
| Ramps & Inclines | ≥ 0.65 | |
| Walls/Backsplashes | N/A | ✓ |
| Countertops | N/A | ✓* |
| Pool Linings | No | ✓+ |
A DCOF value of ≥0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF.
APPLICATION NOTES:
Suitable for exterior applications (provided it is noted as suitable in the applications chart above) in freezing and non-freezing climates, when proper installation methods are followed.
*Floor and Mosaic tile only.
** Mosaic tile only.
*** ColorBody™ porcelain floor tile (24 x 48, 24 x24, 12 x 24, 6 x 24, and 2 x 9) and Mosaic tile only.
+2 x 9 Floor & Fluted tile and Mosaic tile only.
Note: 12 x 24 Woven ColorBody™ porcelain tile and 2 x 9 Fluted porcelain tile only suitable for walls/backsplashes due to the structured surface.
Installation
Grout Joint Recommendation
Floor: 1/8” (3/16” when multiple sizes are installed in a modular pattern, and/or when installing tile with a length 15” or greater in a staggered brick-joint pattern; overlap should not exceed 33%.)
Mosaic: 1/8″ approximately
Testing
| Breaking Strength C648 | Chemical Resistance C650 | Water Absorption C373 | Scratch Hardness MOHS | Bond Strength A137.2-7.7 | Shade Variation Rating |
| >275lbf | Resistant | <0.05% | 8 | Pass | V2 |
Durability
Floor Surface Wear Resistance
1 Residential Bathrooms 3 All Residential / Light Commercial
2 All Residential Areas 4 All Residential / Commercial
Notes
Since there are variations in all fired ceramic and natural products, tile and trim supplied for your particular installation may not match samples. Final confirmation should be made from actual tiles and trim prior to installation. Manufactured in accordance with ANSI A137.1 standards. Not for use on ramps. Water, oil, grease, improper drainage and certain footwear can create slippery conditions. Floor applications expected to be exposed to these conditions require extra caution in product selection. For additional information refer to “Factors to Consider” at: daltile.com/Factors. Random visuals enhance the natural beauty of this product. To achieve optimal results, all tile should be selected from multiple cartons and shading and graphic arrangement planned prior to installation. Special consideration needs to be given when installing tiles greater than 15 inches. Please refer to daltile.com/LargeTiles for more information. Special care should be taken when grouting with dark pigmented colors. A grout release is recommended to prevent finely powdered pigments from lodging in the pores of the surface. Use of a latex modified thin-set is recommended for installation.
Special Features
Large Format
Made in the USA
Mosaic / Deco
Pre-Consumer
RevealSync 3D
Stepwise
TruEdge
ZeroTox
