Memoir Floor Tile
Glazed Ceramic
Description

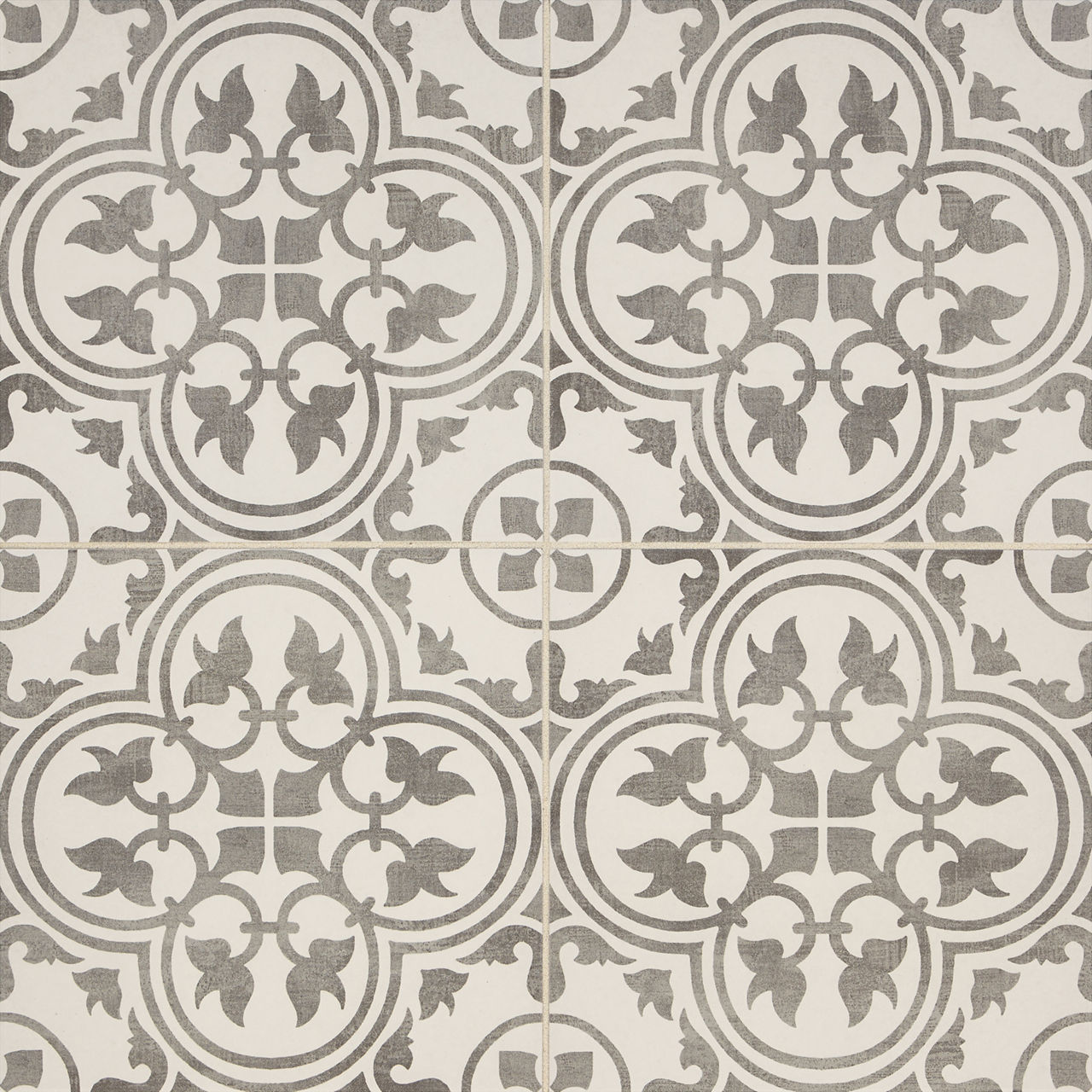

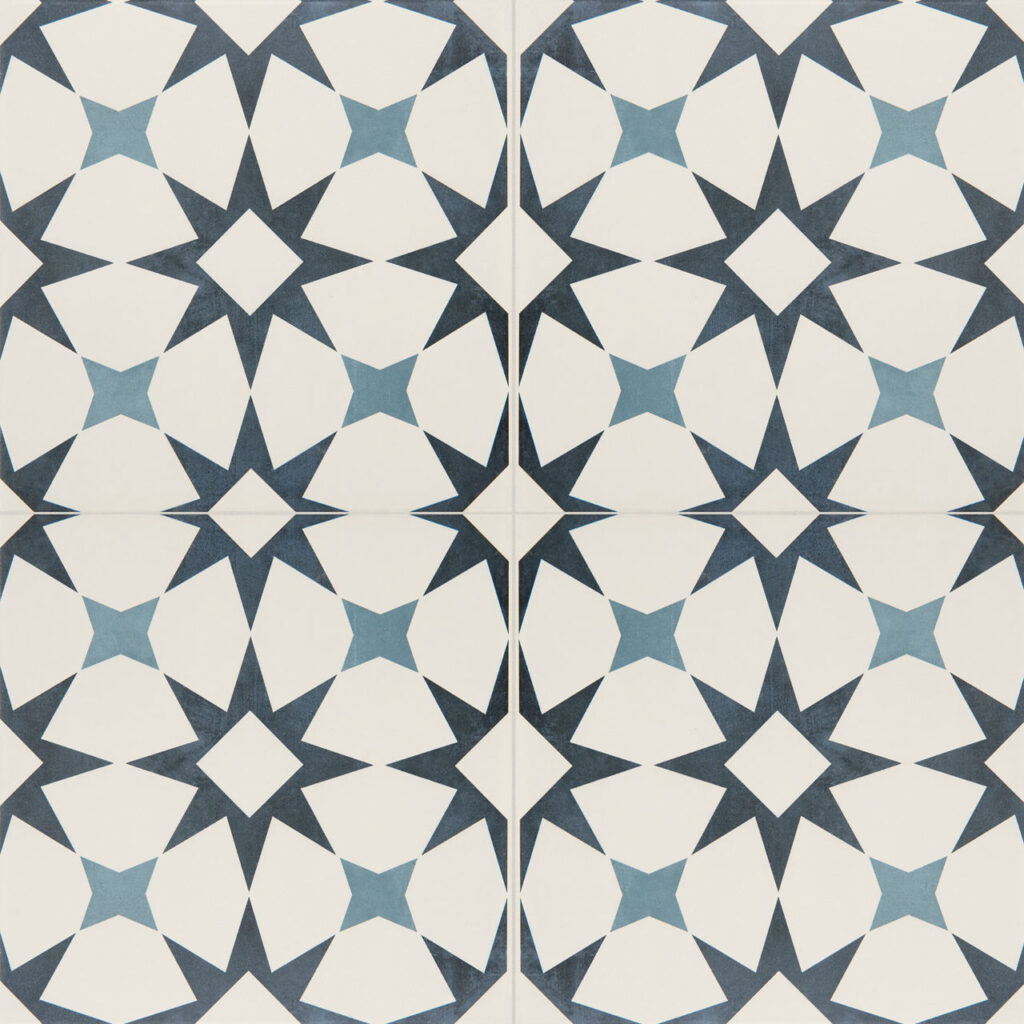

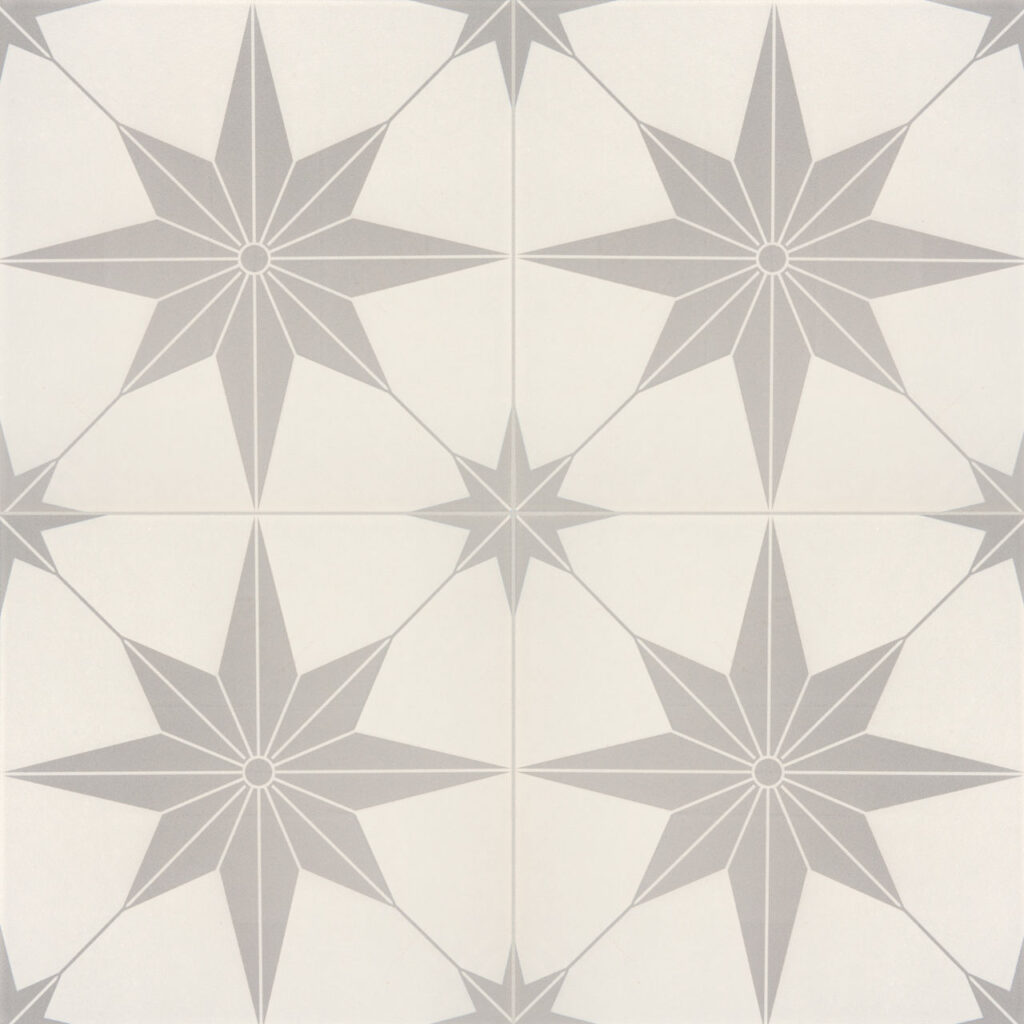

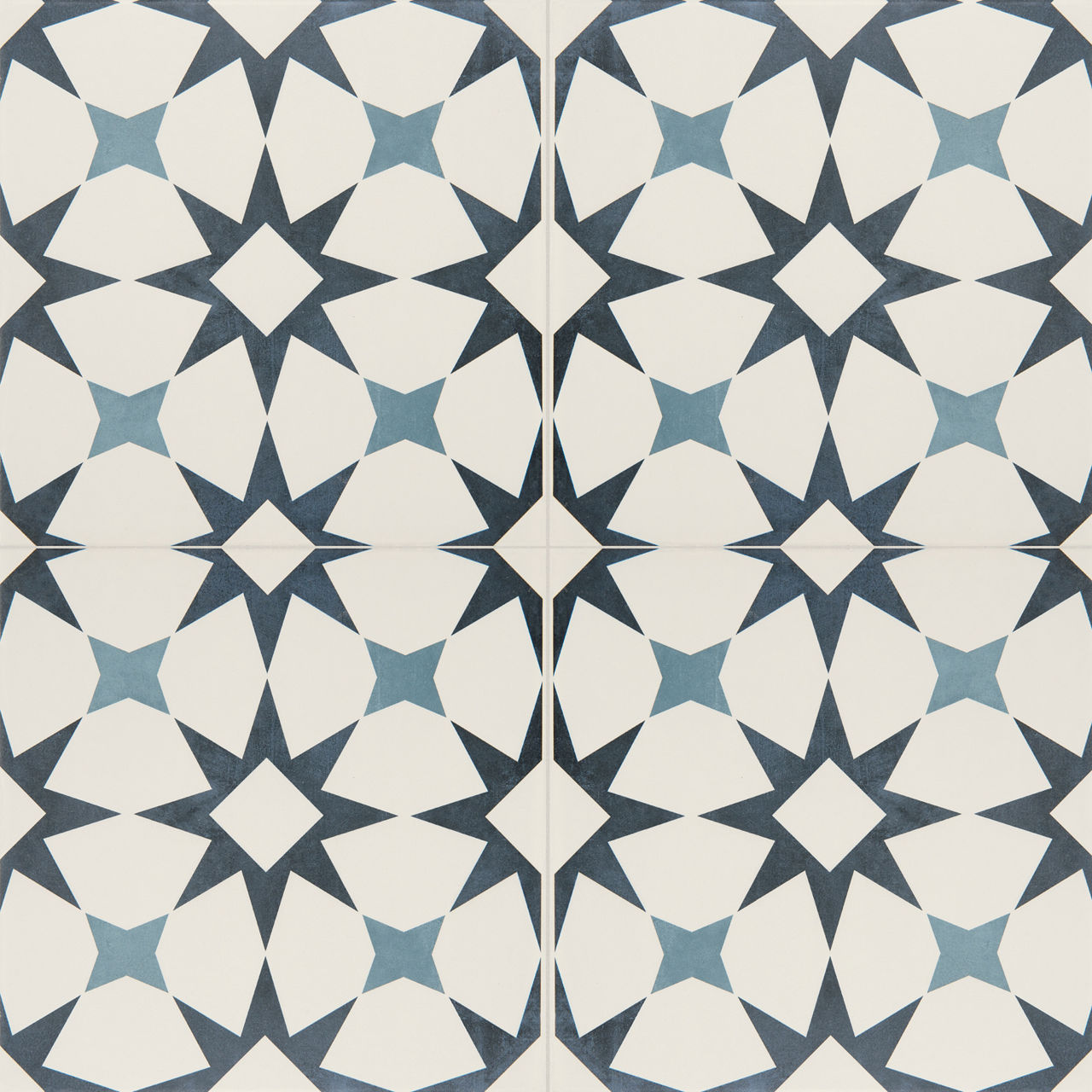

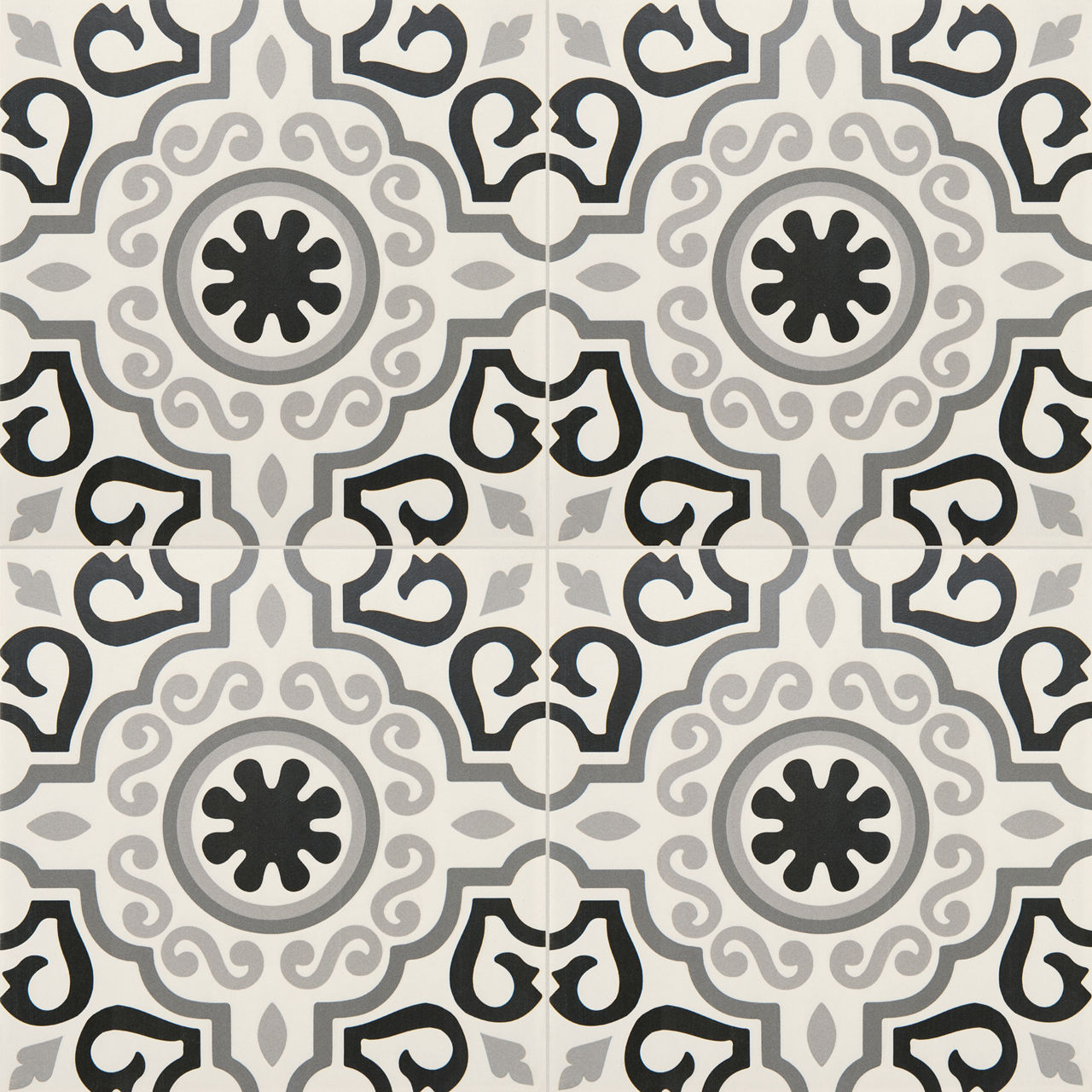

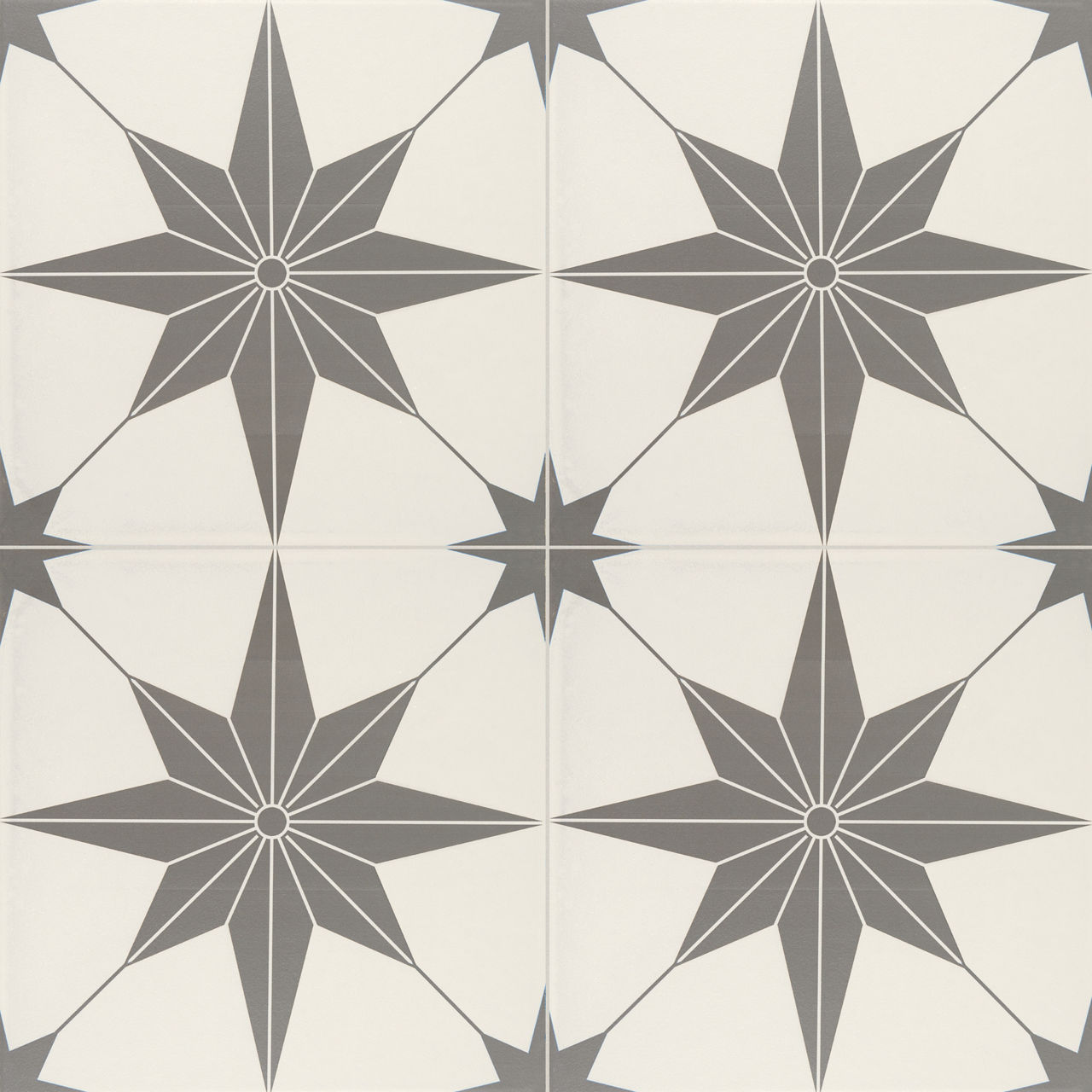

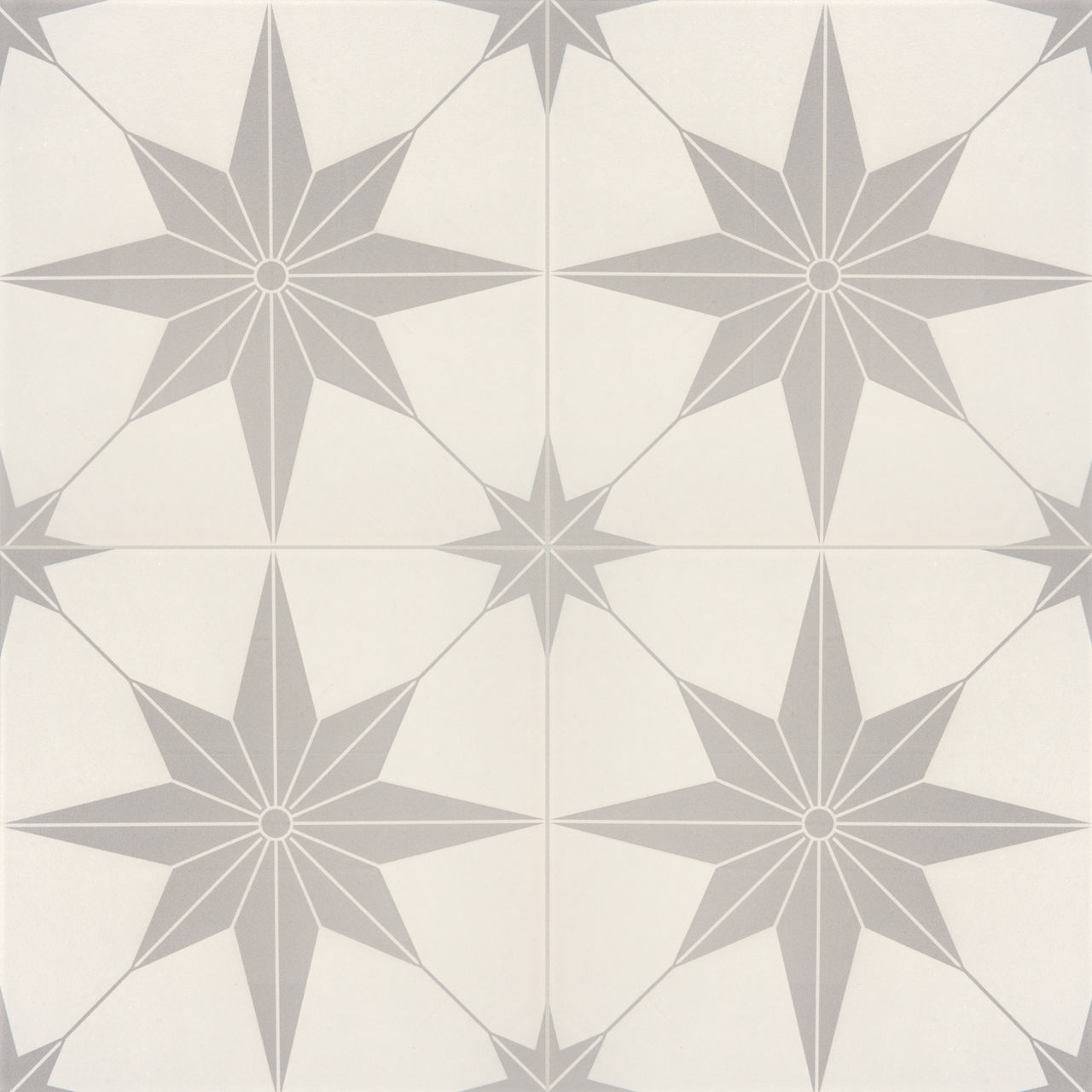

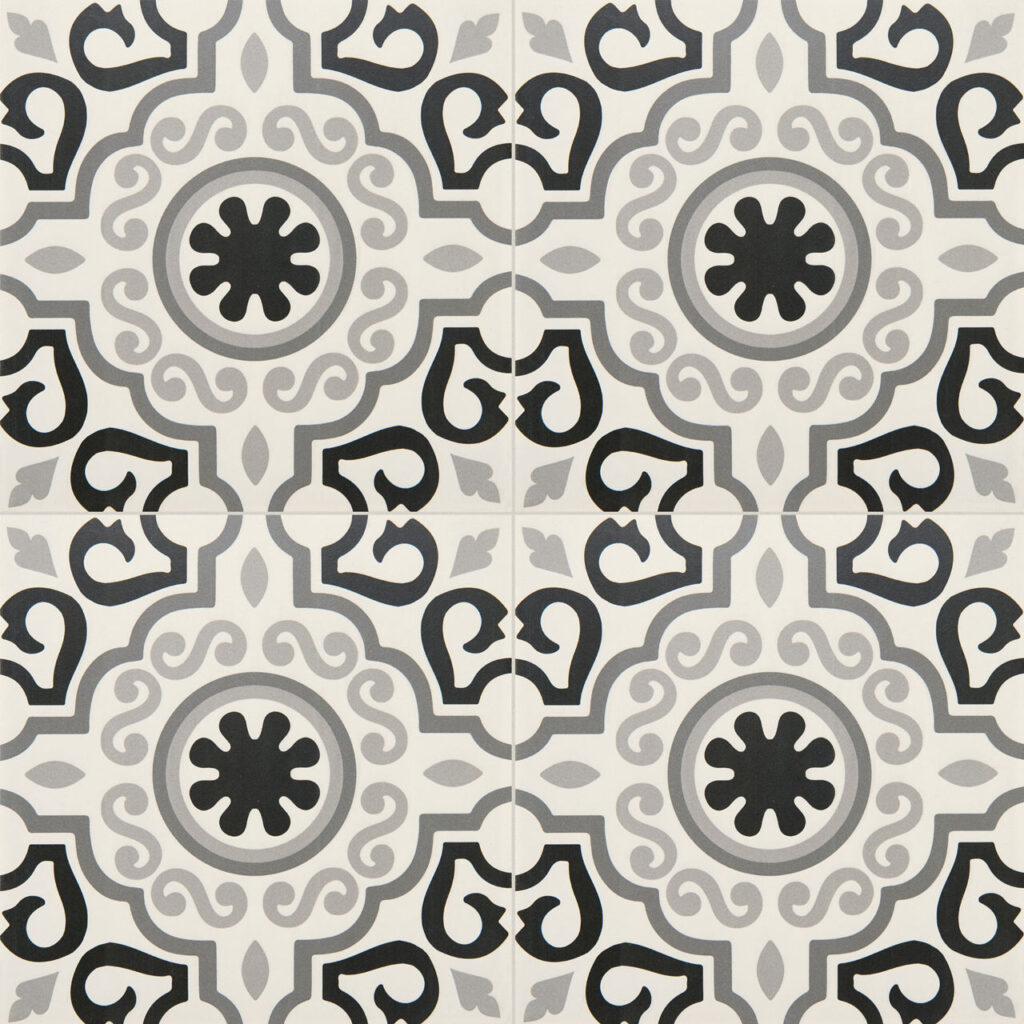

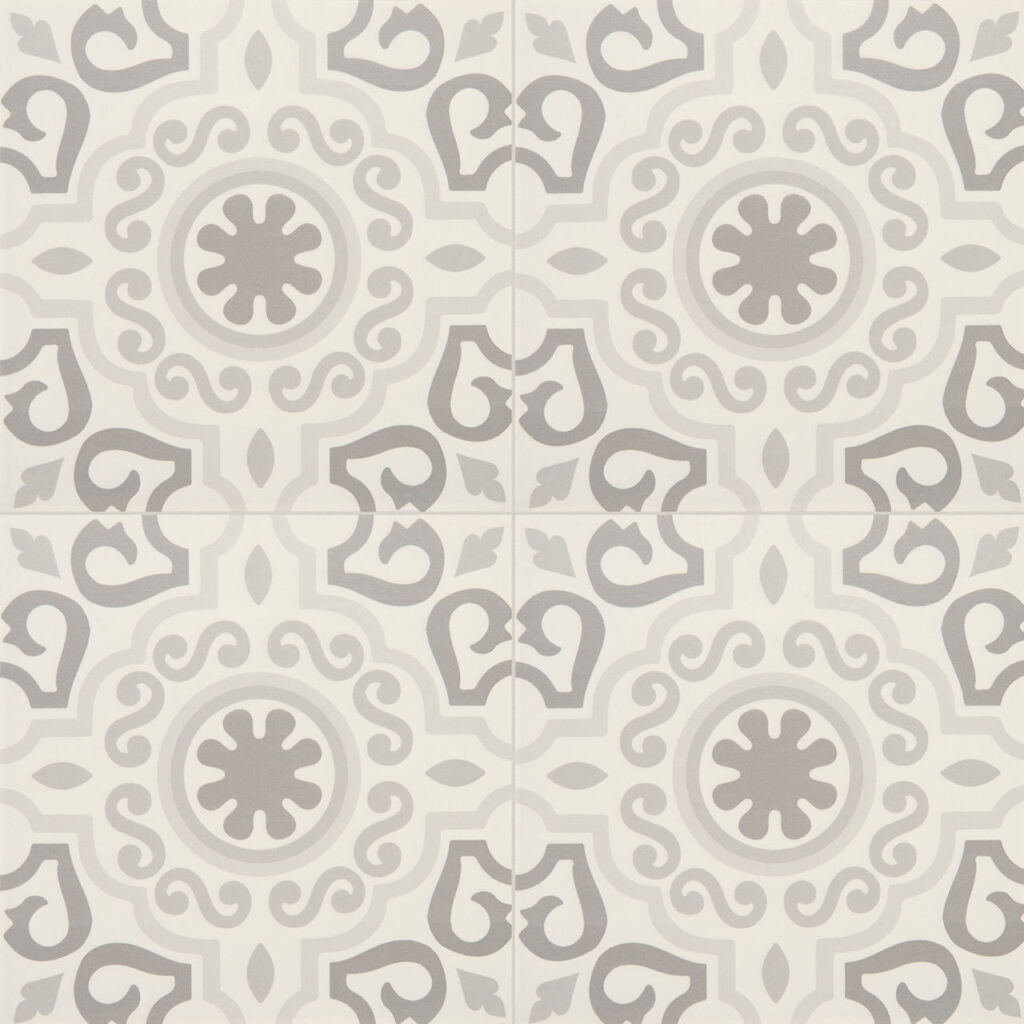

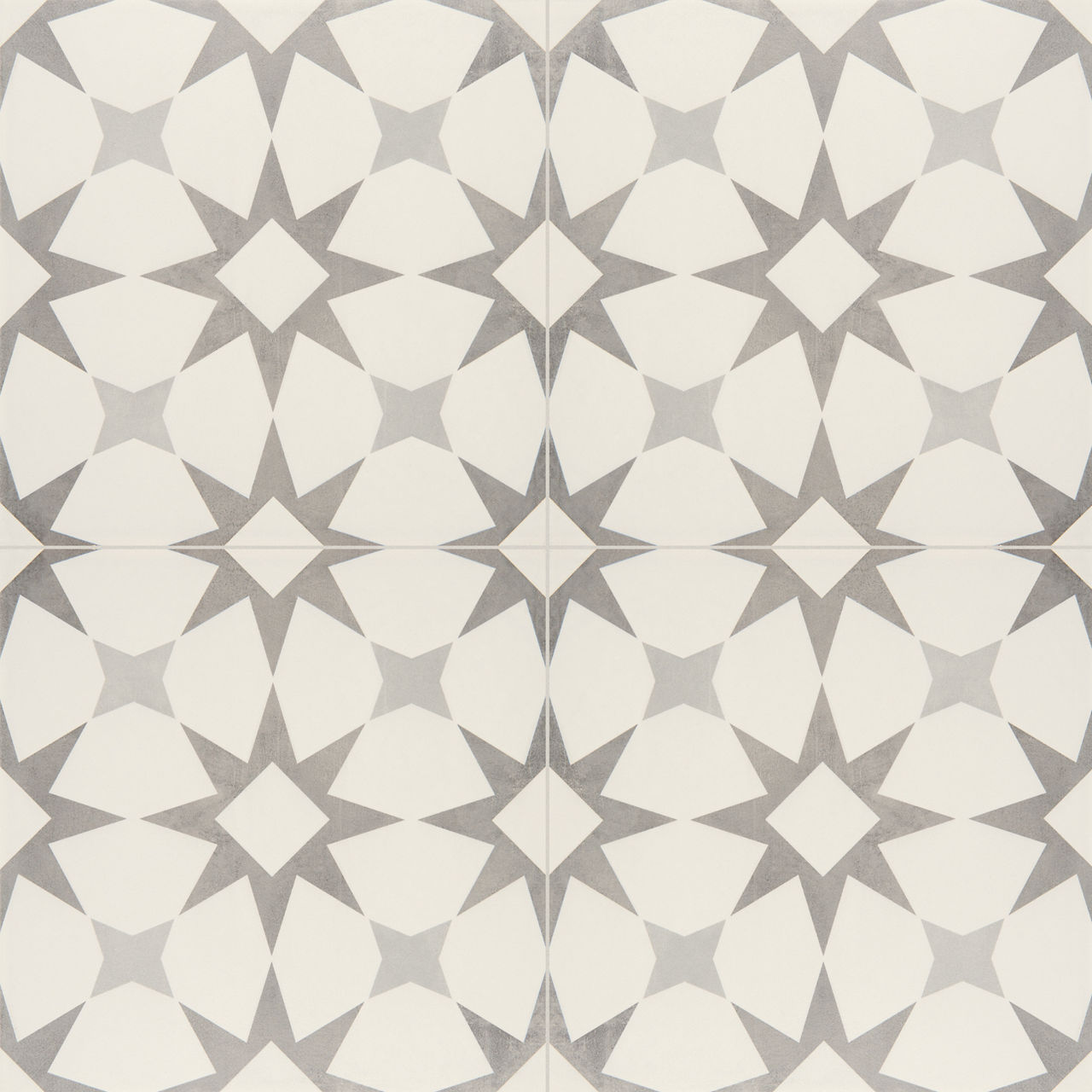

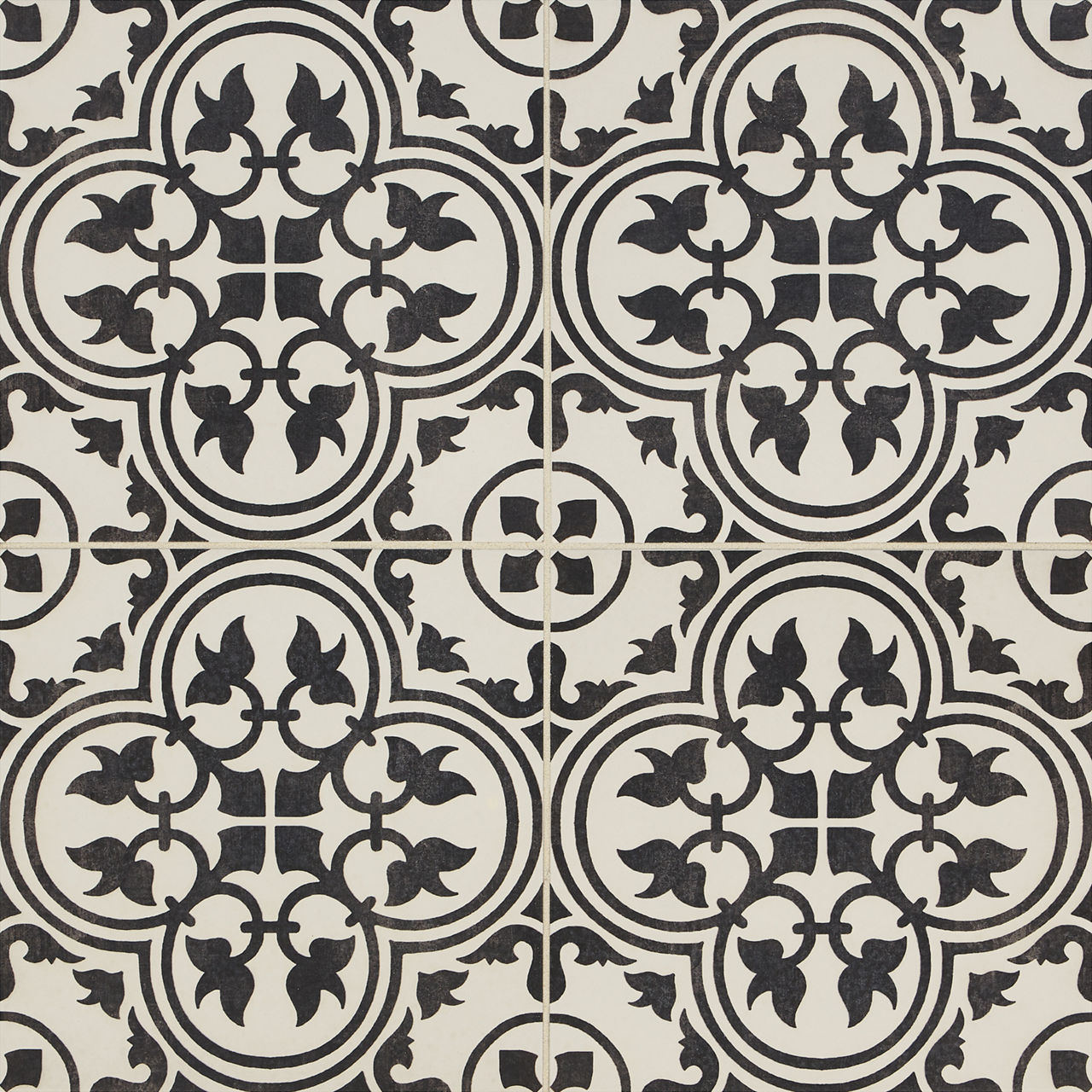

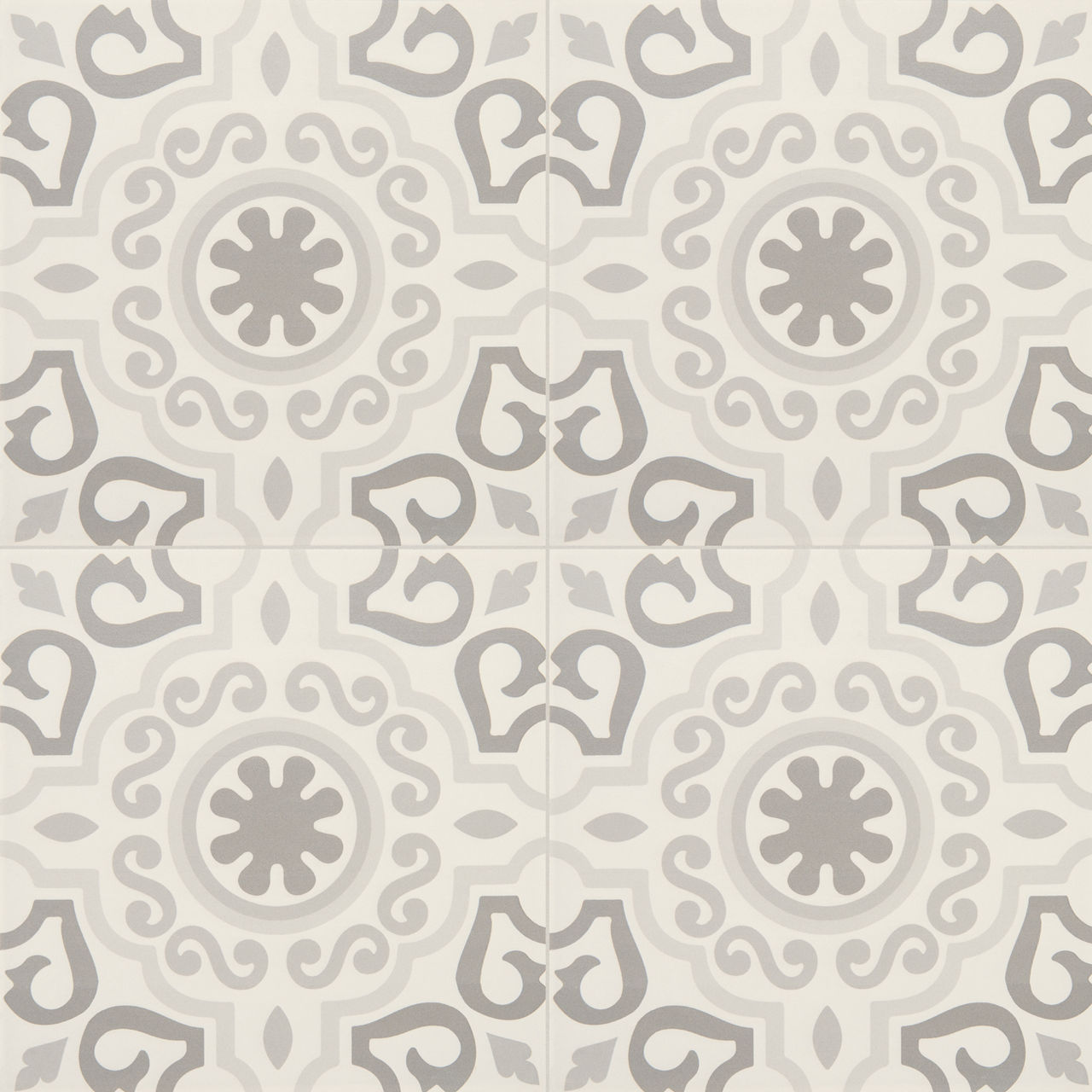

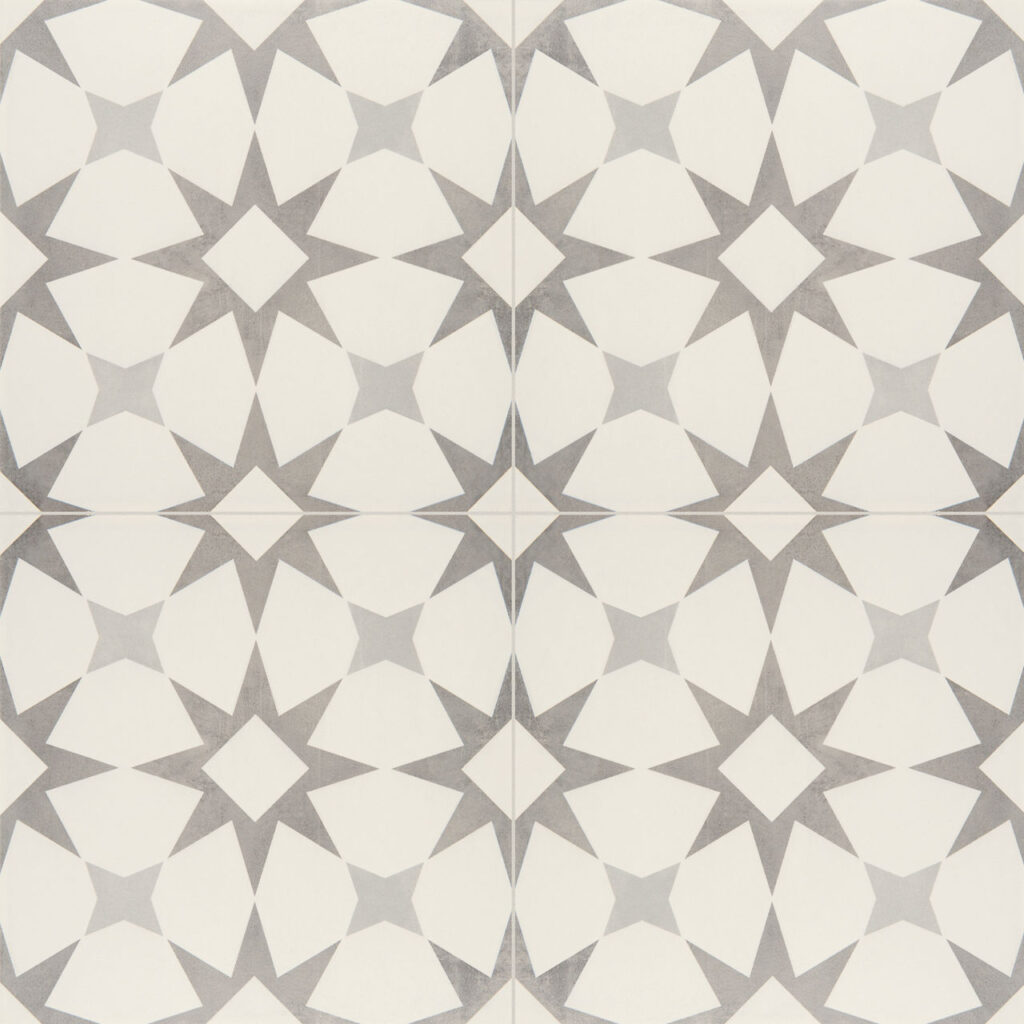

Heritage (by sq. ft.) HISTORIC DESIGN Catch a glimpse of historic design with Memoir™. This mesmerizing assortment consists of concrete-like encaustic tile available in four patterns and two color tones each. Memoir™ is a collection that will make a statement and create everlasting memories. MEMORABLE DESIGNS Four encaustic patterns in geometrical and floral designs, which create a continuous pattern from piece to piece. Four versatile patterns, each offered in two color tones. DESIGN WITH CHARACTER Made in the USA with Reveal Imaging™ Technology 12 x 12 size suitable for both floor and wall applications. Can be utilized as stand-alone or paired as a decorative accent with other collections like Koncrete™.
Thickness
5/16″
Size
12″ x 12″ (11-13/16″ x 11-13/16″)
(30.00 cm x 30.00 cm)
Finish
Matte
Shape
Square

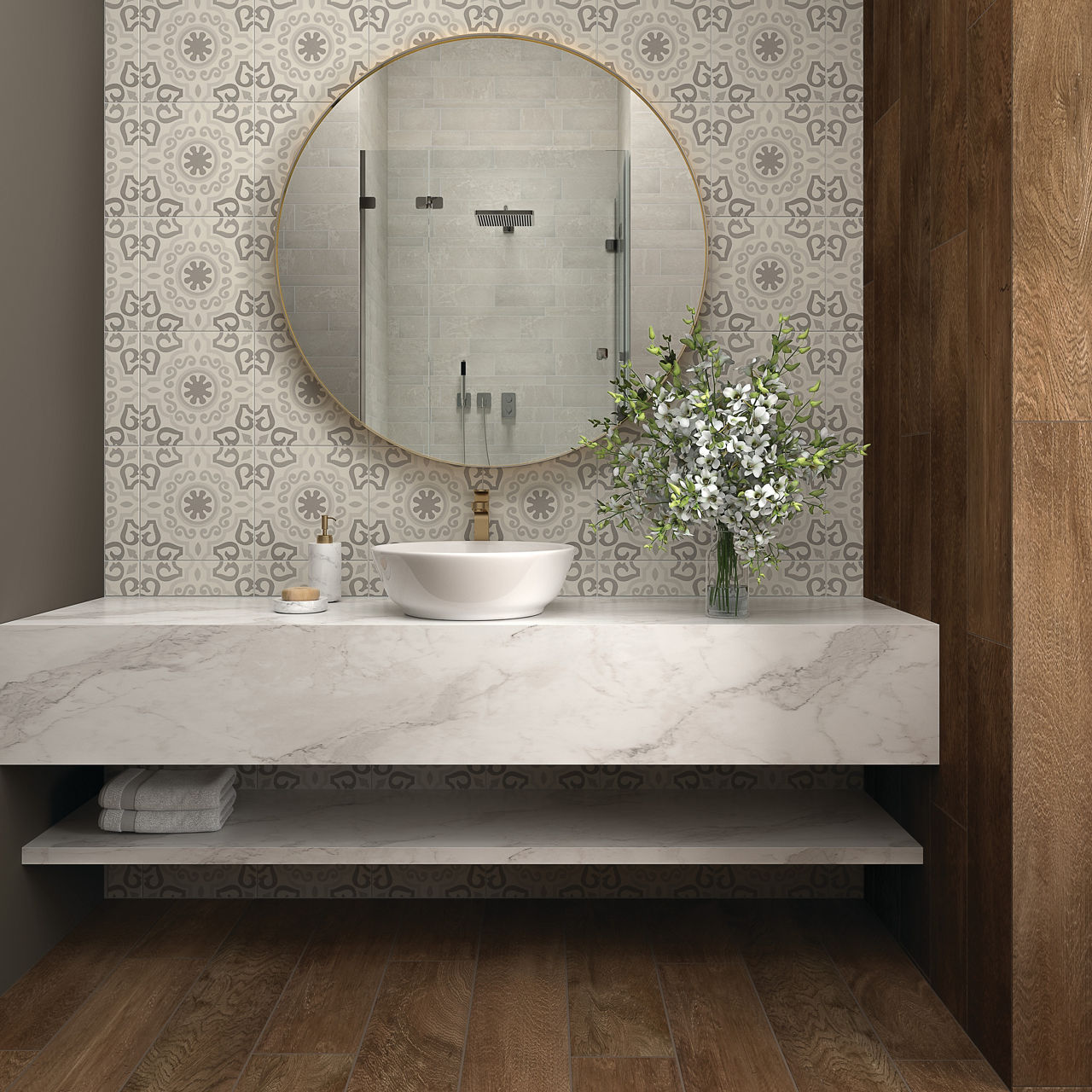

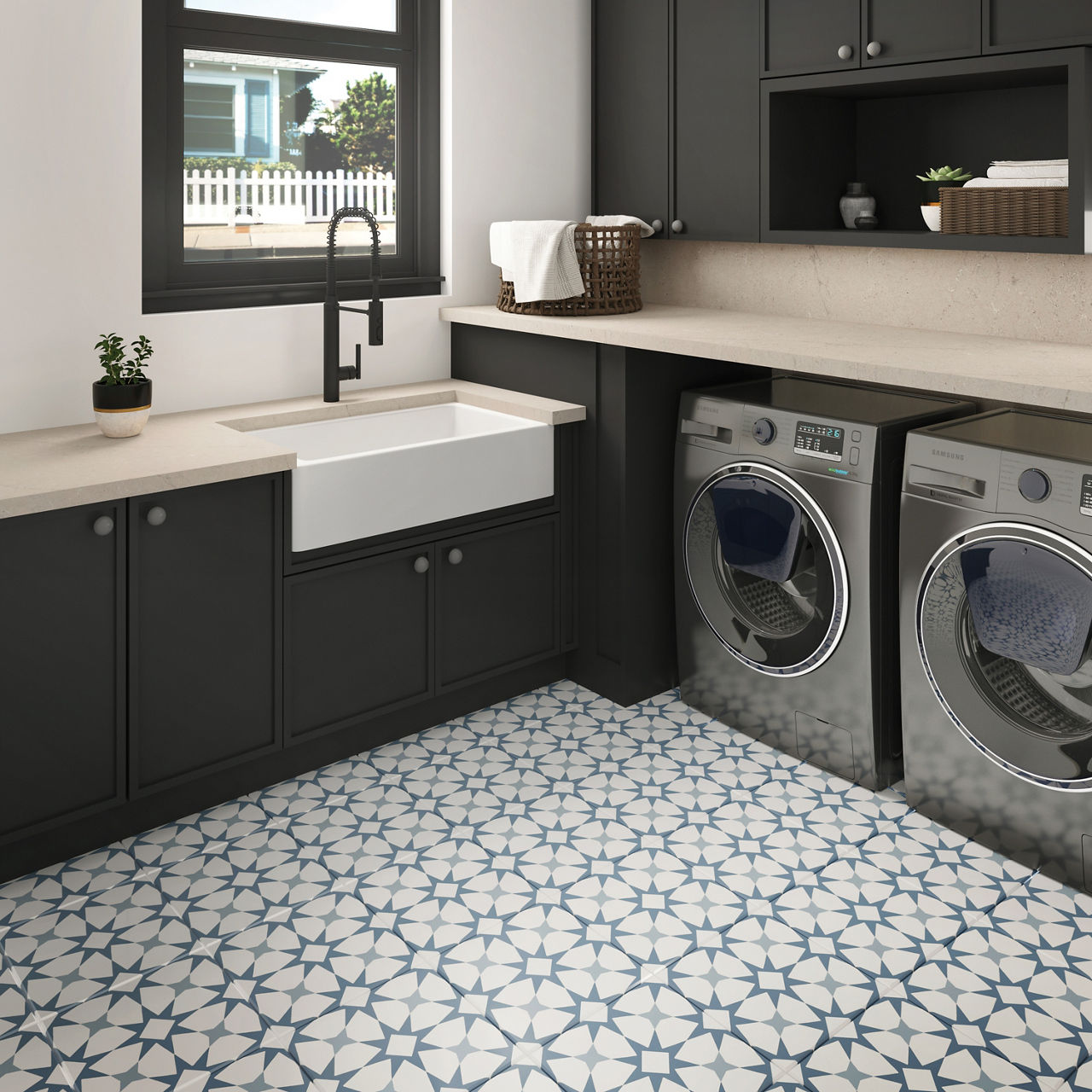

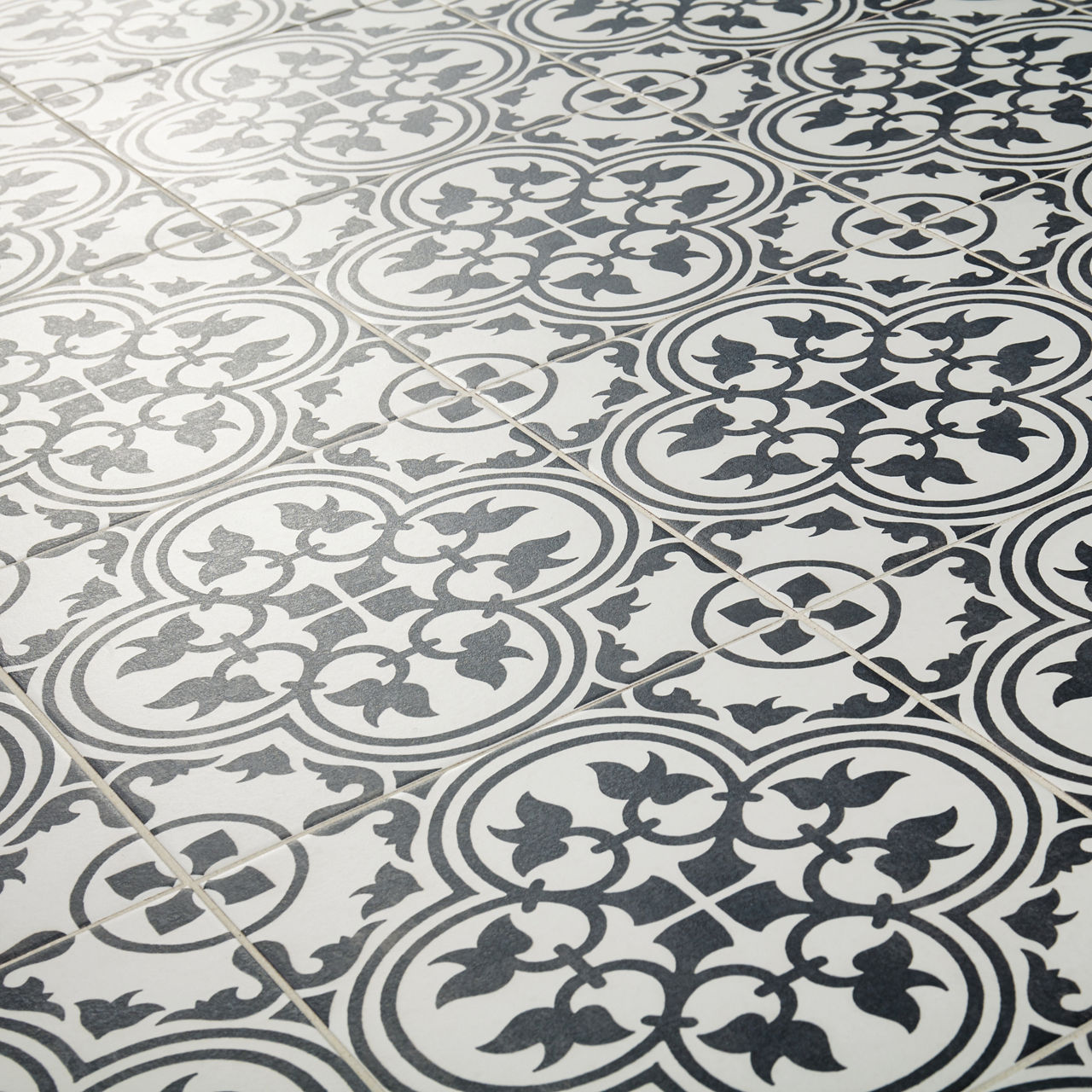

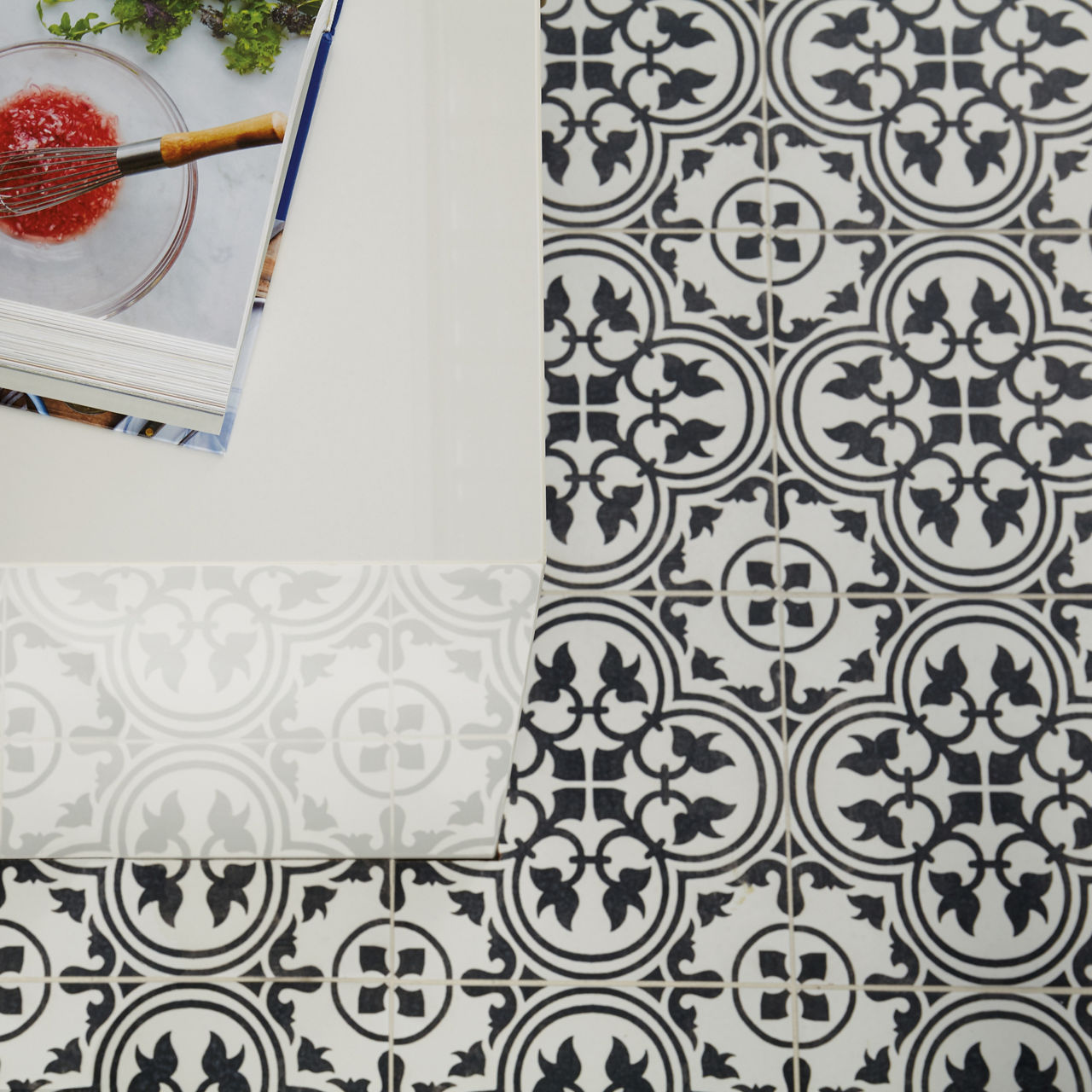

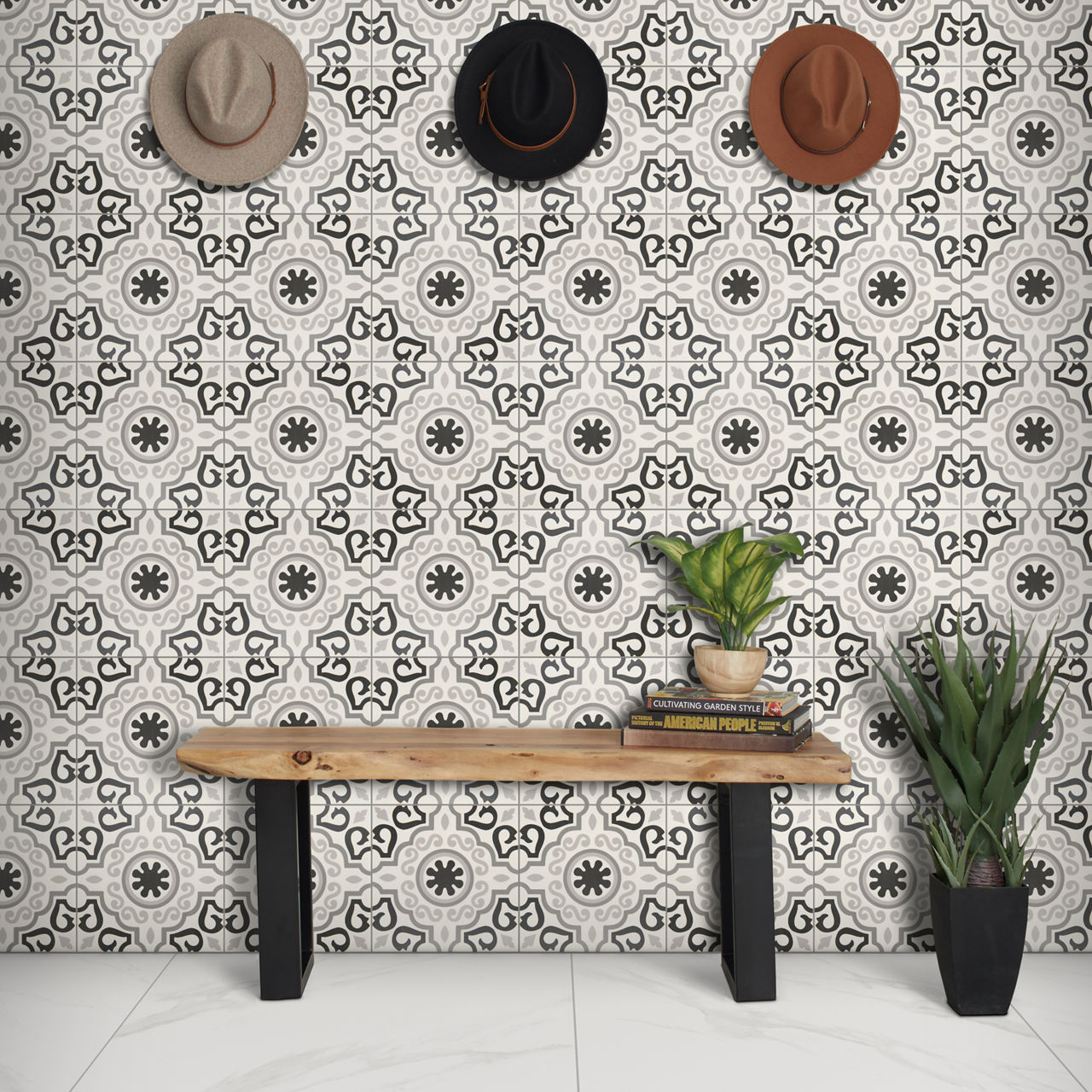

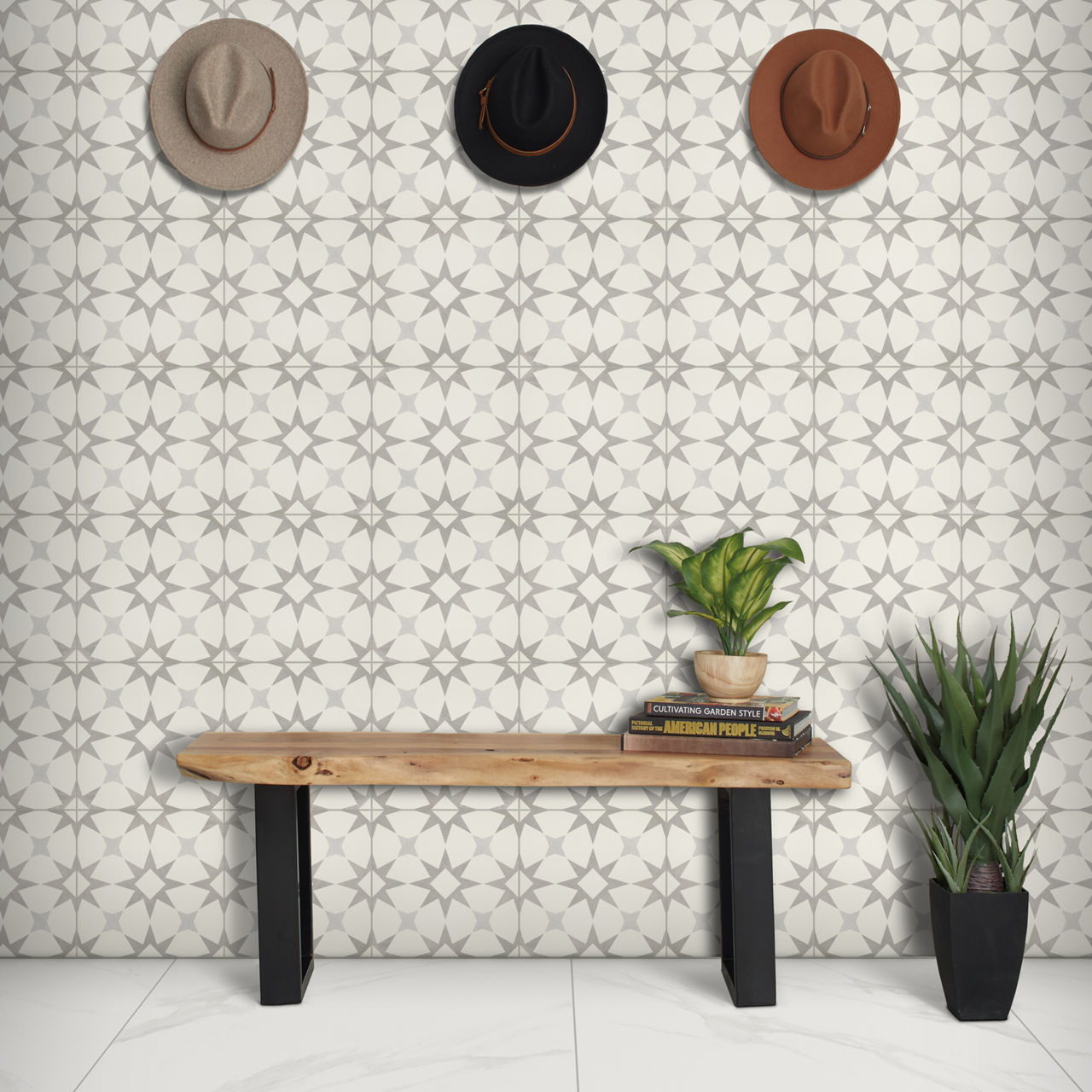

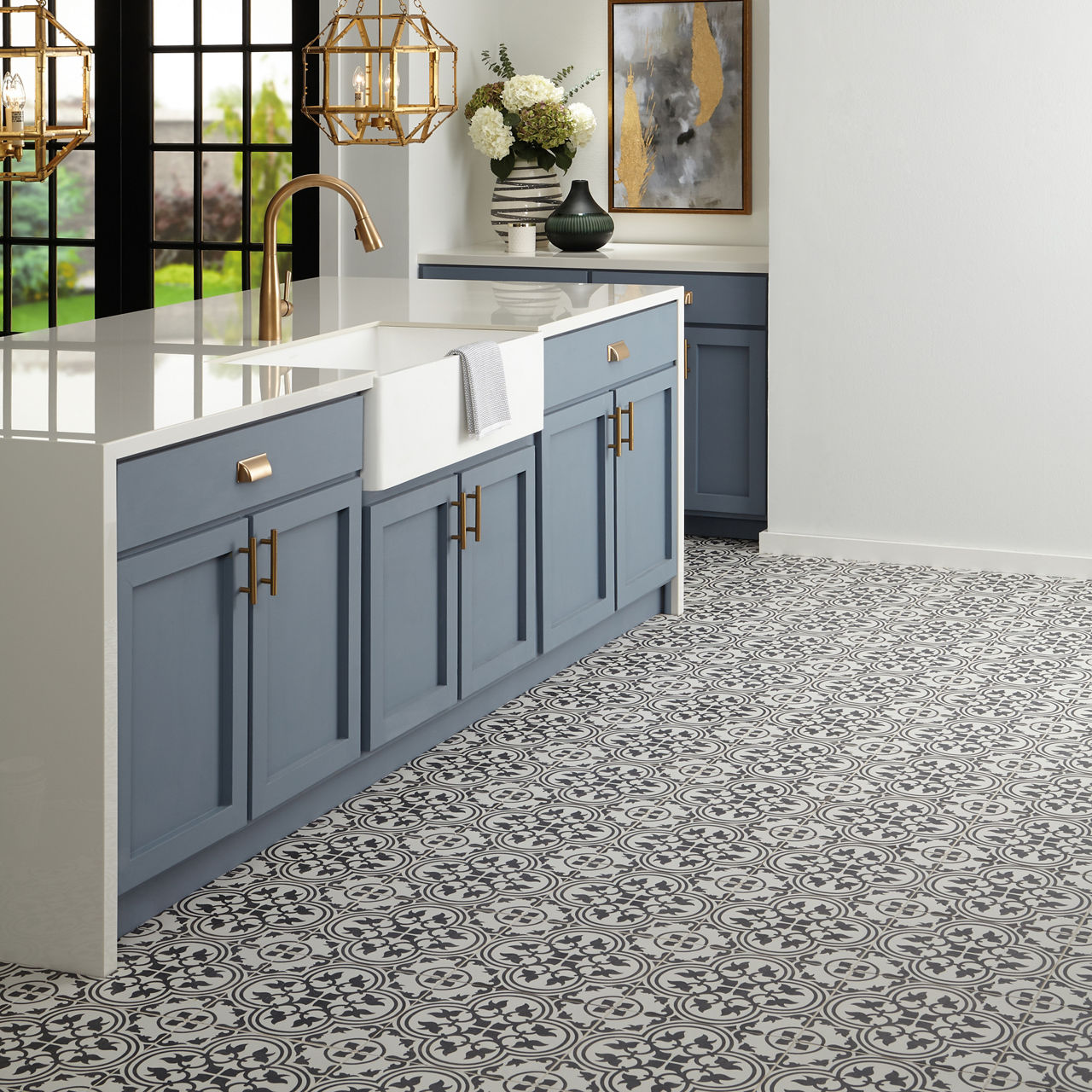

Additional Images
Application
| Target Dcof Wet | Suitable | |
|---|---|---|
| Dry & Level – Interior Floor | N/A | ✔ |
| Wet & Level – Interior Floor | ≥0.42 | ✔ |
| Shower Floors (Residential or Light Commercial) | ≥0.42 | |
| Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) | ≥0.60 | |
| Ramps & Inclines | ≥0.65 | |
| Walls/Backsplashes | N/A | ✔ |
| Countertops | N/A | ✔ |
| Pool Linings | N/A | |
| Grout Joint Recommendation: 3/16″ | ||
| ● Manufacturer Advisory: All tile is measured by the DCOF AcuTestTM method. Tiles with DCOF values less than 0.42 are not recommended for use in areas with wet or slippery conditions. For more information, see ANSI standard A137.1 section 6.2.2.1.10, available at www.tileusa.com. | ||
APPLICATION NOTES:
Picket, Ripple, Kaleidoscope and Fan suitable for exterior applications in non-freezing climates only when proper installation methods are followed.
Bevel and Structural not recommended for exterior applications.
Testing
| Breaking Strength C648 | Chemical Resistance C650 | Water Absorption C373 | Scratch Hardness MOHS | Shade Variation Rating |
| > 250 lbs | Resistant | < 7.0 | 8 | V2 |
Durability Chart
| Floor Surface Wear Resistance |
|---|
| 1 – Residential Bathrooms |
| 2 – All Residential Areas |
| 3 – All Residential / Light Commercial |
| 4 – All Residential / Commercial |
Special Features
Pre-Consumer
ZeroTox
Encaustic
Reveal Imaging
Post-Consumer
