Samoa Antracita 16X31

Samoa Antracita 16″ X 31″

Through-Body Porcelain

Description

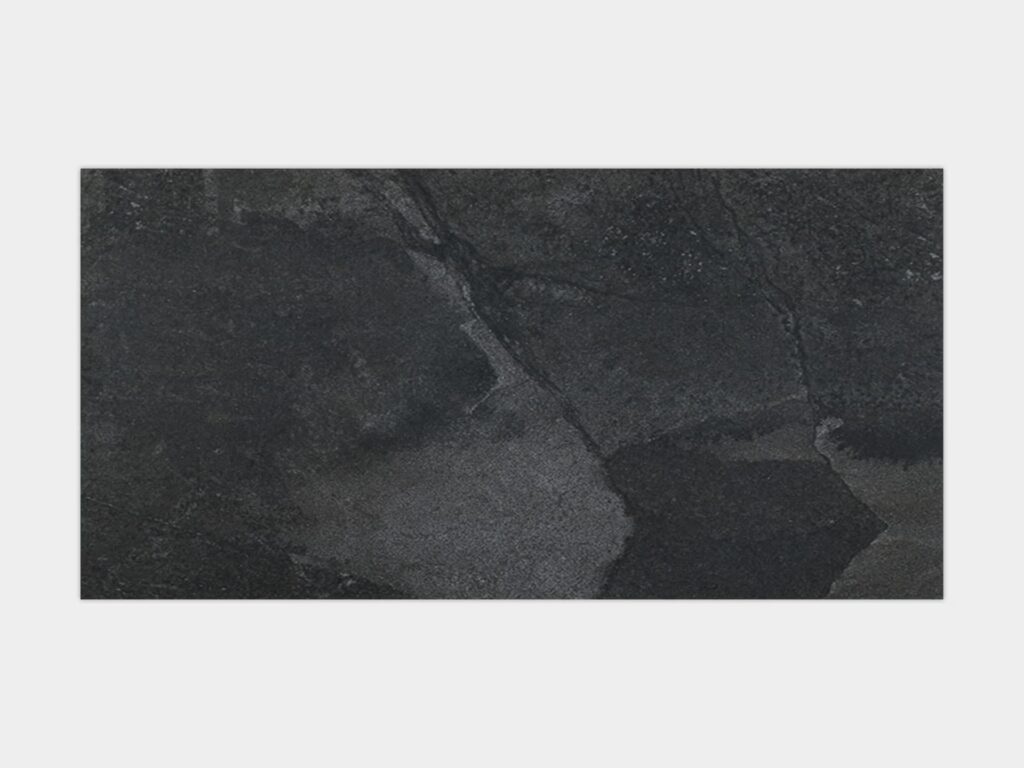

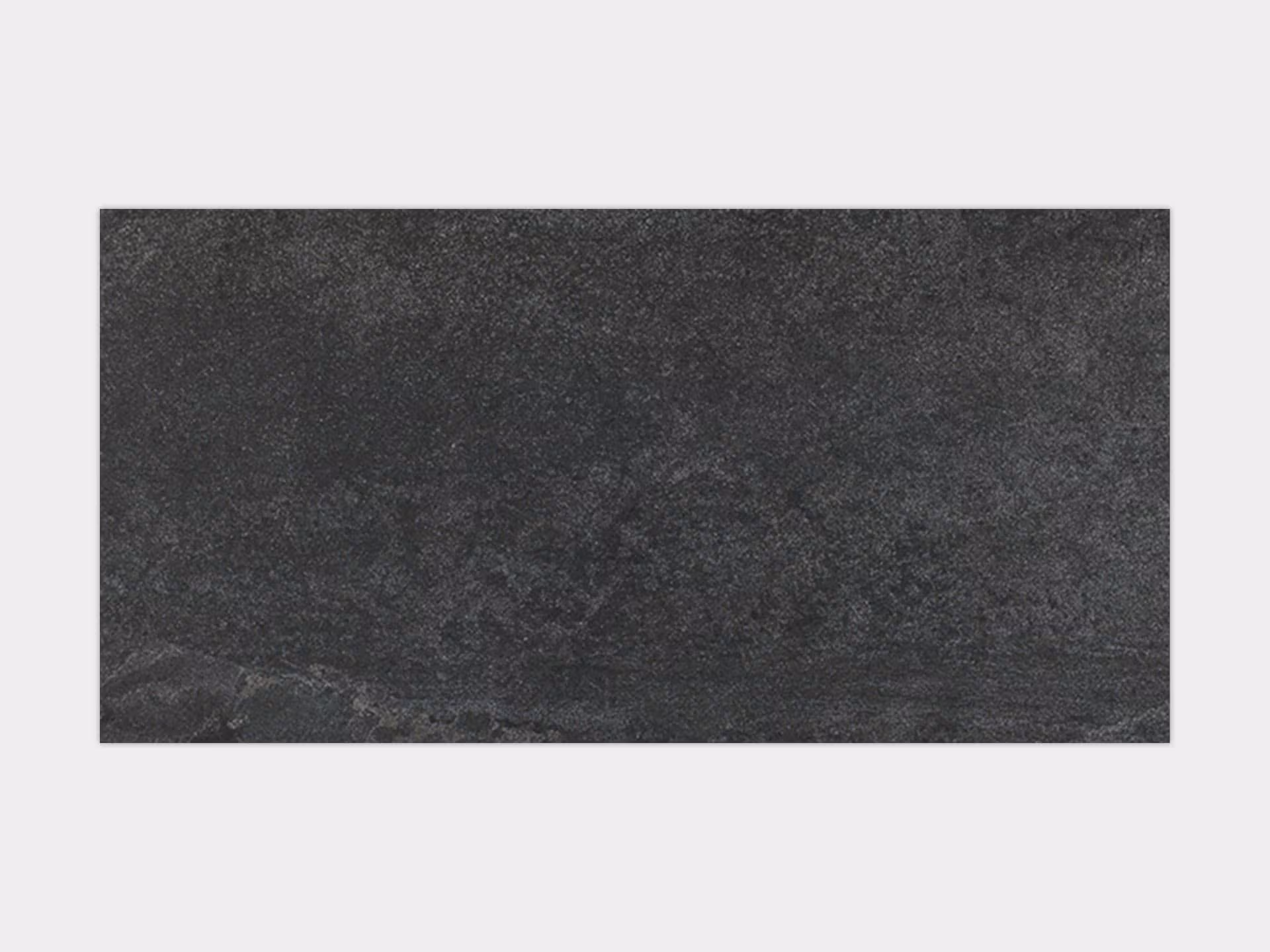

Infinity (by sq. ft.) The Samoa Antracita is a matte black stone effect through-body porcelain tile, 16×31 in. The Samoa Antracita Antique is a black stone effect anti-slip porcelain floor tile, size 16 x 31 in, and suitable for outdoor floors.

Features

Tile with a high degree of compaction, uniform in appearance and with a lower percentage of glazing in the composition. Natural-looking, non-glossy surface finish. General deshaded design with a degree of color and appearance variation. Name given to the finish of those tiles dimensionally improved after the firing process. U4 Installation on floor.

Colors

Thickness

3/8″ approx.

Size

(16″) x 31 1/2″ approx.

Finish

Matte

Shape

Rectangle

Edge Detail

Rectified


Downloads

Maintenance

Applications

Bathroom, Bedroom, Kitchen, Living Room, Outdoor Wall, Floor, Wall

Testing

Breaking Strength Chemical Resistance Water Absorption Stain ResistanceCrazing ResistanceModulus of RuptureShade Variation Rating
644.59 LBF >292LBF*Class “A” for swimming pools and cleaning products
(resists attack). Minimum Class “B” for acids and bases
B Min.*
BIII – Revestimiento (10%<=E<=20%)Class 5. Easy cleaning with water 3 Min.*Resists 3 cycles11.18 LBF >=8LBF*V3

*ASTM C648/C650/C1378

Qb-upec (u) 4
Qb-upec (p) 4
Qb-upec (e) 3
Qb-upec (c) 2
Resistance to thermal shock RESISTE

ANTI-SLIP VALUEAntracita
Dynamic coefficient of friction (dcof) 0.64 (T12C2)
Slip resistance (wet pendulum) irhd 55 CL1
Slip resistance (shod feet) <R-9 TONO 8 / ID 2124*
Pendulum test value (ptv) irhd 96 WET 26 / DRY 59 (T12C2)
*ANSI A326.3

ANTI-SLIP VALUE-Antracita Antique
Dynamic coefficient of friction (dcof) 0.75 (T11C2)
Slip resistance (wet pendulum) irhd 55 CL3
Slip resistance (shod feet) R-12 TONO 8 / ID 1567*
Pendulum test value (ptv) irhd 96 WET 60 / DRY 63 (T11C2)
*ANSI A326.3

DETERMINATION OF LIGHT REFLECTANCE VALUE (LRV)
Determination of light reflectance value (lrv) = 8.9/Antracita, 10.14/Antracita Antique

Packing

Sales units per box 13.78 SQF/CS
Sales units per pallet 661.33 SQF/PAL
Sales units per unit 3.44 SQF/ST

Recommended Use Locations – Antracita

Single-family dwelling
Outdoor Premises: Porches, verandah, terrace, outdoor access or circulation area
Indoor Premises – Dry: Entrance and other enclosures with direct opening to the outside (garden, terrace, storage room).
Indoor Premises – Dry: Individual staircase
Indoor Premises – Wet: Kitchen, mini kitchen in living area, laundry room
Indoor Premises – Humid: Bathroom or Toilet
Collective housing
Outdoor premises: Balconies, terraces, galleries (not accessible from the outside)
Indoor Premises – Common Elements: Entrance Hall (less than 15 dwellings)
Interior Premises – Common Elements: Entrance Hall (more than 15 dwellings)
Indoor Premises – Common Elements: Stairs and corridors with or without lifts
Indoor Premises – Common Elements: Meter centralisation room
Indoor Premises – Common Elements: Storage rooms for children’s cars, bicycles, etc.
Indoor Premises – Dwelling – Damp: Kitchen, mini kitchen and living area, laundry room
Indoor Premises – Dwelling – Damp: Bathrooms or shower rooms
Public Residential
Single or double rooms
Group rooms
Intensive use dormitories in residences, schools, etc.
Administrative
Office with workstation
Collective office, open plan office
Meeting/conference room, shops and retail (sales area)
Shops, warehouses with average public attendance (sales area)
Department stores, hypermarkets, shopping centres (sales area)
Commercial
Shops and retail trade (Sales area)
Shops, warehouses with average public attendance (sales area)
Department stores, shopping centres (sales area)
Teacher
Pre-school and Primary: Classroom without direct opening to the exterior
Infant and Primary: Playroom, exercise, multi-purpose room without direct opening to the outside.
Secondary, Baccalaureate and University: Classroom without direct opening to the outside.
Secondary, Baccalaureate and University: Multi-purpose classroom, meetings
Secondary, Baccalaureate and University: Other laboratories (physics, electricity, radiation, mechanics).
Sanitary
Single-user room, isolation room
Collective room
Waiting rooms, consultation rooms, distribution corridors
Major and minor operating theatres. Operating theatres
Radiological premises
Rehabilitation, massage, therapy and rehabilitation centres
Laboratories (no public access)
Public attendance
Catering: Main dining room, banqueting hall (intensive use)
Catering: Dining room restaurant, bar, cafeteria (medium use)
Catering: Dining room, company cafeteria
Entertainment and recreation: Large hall for receptions, dances, discotheques. Intensive use
Entertainment and recreation: Showroom, cinema, theatre, sports activities, amphitheatres, games (Closed)
Entertainment and recreation: lounges, waiting room, TV lounge, games room
Libraries and reading rooms: Libraries, reading rooms, temples of worship, museums (With public access)
Libraries and reading rooms: Libraries, reading rooms, houses of worship, museums (Internal use)

Common transit areas
Indoor premises: corridors and common areas with heavy traffic
Indoor premises: Corridors and common areas with average traffic
Service, facilities
Toilets in office areas, restricted use
Sanitary premises special hygiene (hospitals, food)
Premises for telephone, computer and other dry installations
Re-printing service, copies of plans, photography
Archive and storage premises

Recommended Use Locations – Antracita Antique

Collective housing
Indoor Premises – Common Elements: Refuse Container Room
Public attendance
Catering: Collective kitchen, large facilities
Entertainment and recreation: Showroom, cinema, theatre, sports activities, amphitheatres, games (Outdoor)
Sports Facilities: Indoor swimming pools and saunas
Sports Facilities: Private outdoor swimming pools
Sports Facilities: Public open-air swimming pools
Common transit areas
Outdoor premises: outdoor circulation area with average traffic
Outside premises: Parking area (pedestrian use only)
External premises: External stairways and ramps with intensive transit
Outdoor premises: Stairways and outdoor ramps with medium traffic
Outdoor premises: Outdoor terrace for hotel and restaurant use
Service, facilities
Laundry, rubbish and organic waste storage premises
