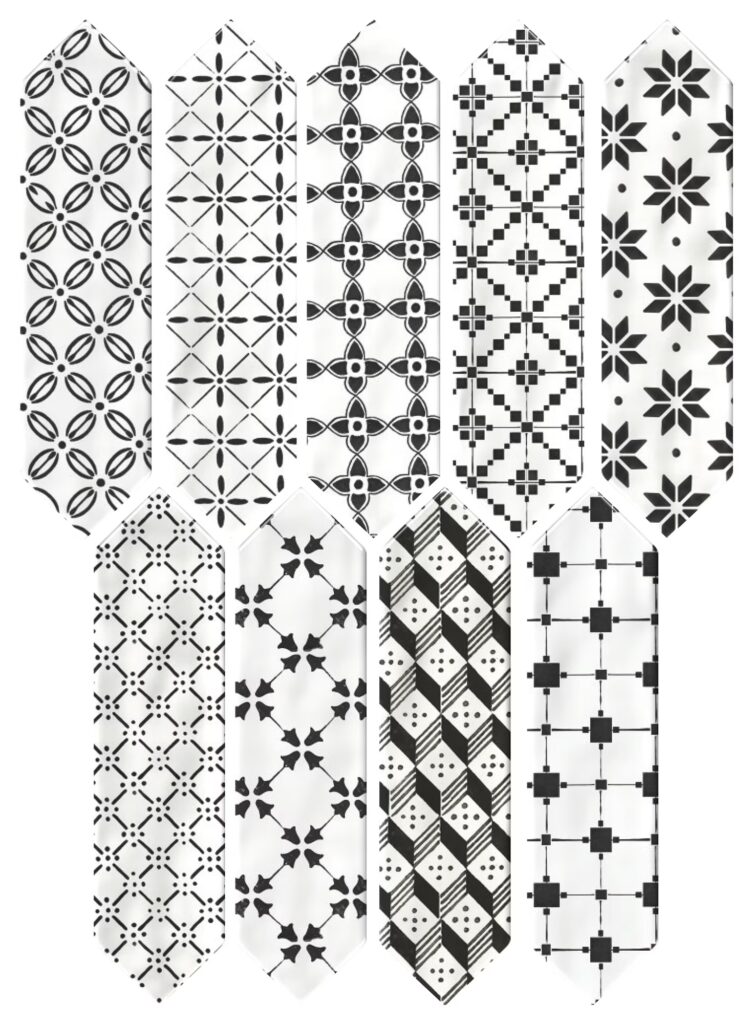

Stagecraft 3″ x 12″ Undulated Picket Mix
Glazed Ceramic
Description
Ambiance (by sq. ft.) Stagecraft™ rewrites design with a theatrical cast of colors, shapes and finishes. This collection stars 3 x 12 wall tile in a rectangular and a picket shape along with a 6-inch kaleidoscope mosaic. Stagecraft features an undulated surface and is available in five popular colors from the Color Wheel™ Collection in both glossy and matte finishes. The 3 x 12 picket wall tile also comes two crafty blends which can be used alone or mixed with the solid picket wall tile. With its astonishing patterns and versatile shapes, Stagecraft is a real showstopper. Solid colors 12″ jolly trim available in matte and glossy finishes.
Thickness
5/16″
Size
3″ x 12″(7.63 cm x 30.70 cm)
Finishes
Glossy
Shape
Picket
Shade Variation
V4
View the collection.
Application
| USAGE TYPES: | Target DCOF Wet | Suitable |
| Dry & Level – Interior Floor | N/A | ✓* |
| Wet & Level – Interior Floor | ≥ 0.42 | ✓* |
| Shower Floors (Residential or Light Commercial) | ≥ 0.42 | ✓* |
| Exterior Floor Applications (including patios, pool decking & other wet areas with minimal footwear) | ≥ 0.60 | |
| Ramps & Inclines | ≥ 0.65 | |
| Walls/Backsplashes | N/A | ✓ |
| Countertops | N/A | ✓* |
| Pool Linings | N/A | ✓** |
A DCOF value of ≥0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF.
APPLICATION NOTES:
Suitable for exterior applications (provided it is noted as suitable in the applications chart above) in freezing and non-freezing climates, when proper installation methods are followed.
* Matte mosaic tile only.
** Mosaic tile only.
Grout Joint Recommendation
3 x 12 Picket Wall Tile: 1/16″
3 x 12 Wall Tile : 1/16″ (When rectangular size is installed in a staggered brick-joint pattern, overlap should not exceed 33%.)
Mosaic: 1/8″
Testing
| Breaking Strength C648 | Chemical Resistance C650 | Water Absorption C373 | Scratch Hardness MOHS | Shade Variation Rating |
| < 250 lbs Mosaic 120 – 230 lbs Wall | Resistant | < 3.0% Mosaic < 20% Wall | Glossy: 4.0 – 6.0 Matte: 7.0 Mosaic 4.0 – 6.0 Wall | V1 Solids, V4 Decos |
Notes
Since there are variations in all fired ceramic and natural products, tile and trim supplied for your particular installation may not match samples. Final confirmation should be made from actual tiles and trim prior to installation.
Manufactured in accordance with ANSI A137.1 standards.
For additional information refer to “Factors to Consider” at: daltile.com/Factors.
Random visuals enhance the natural beauty of this product. To achieve optimal results, all tile should be selected from multiple cartons and shading and graphic arrangement planned prior to installation.
Special Features
Mosaic / Deco
Post-Consumer
Pre-Consumer
Reveal Imaging
ZeroTox
